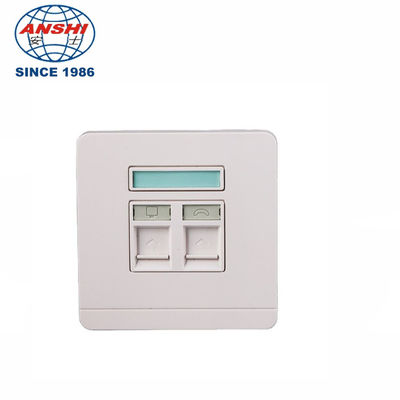

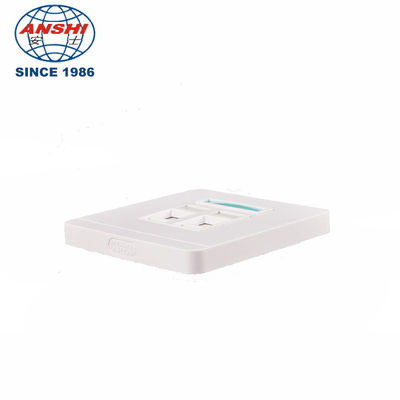

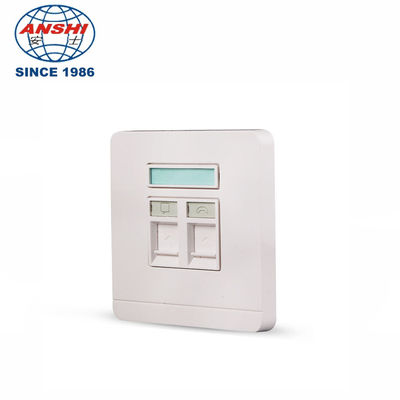

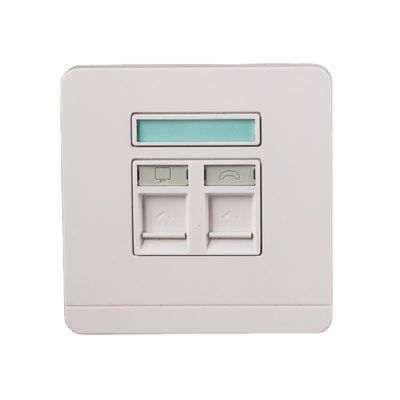

ANSHI Network 86 Faceplate Cat5e Cat6 Cat7 Faceplate Ethernet Wall Socket Rj45 Face Plate 86x86mm Dual Port

ANSHI Network 86 Faceplate Cat5e Cat6 Cat7 Faceplate Ethernet Wall Socket Rj45 Face Plate 86x86mm Dual Port

FacePlate,Facaplate,Single Gang FacePlate 1,2,3,4,6 Ports
Single gang faceplate with one, two, four and six port configurations support the
use of STAR600 modules as well as all other SpeedStar and FlexPlate jack modules.
European Flush Plate With Shutte

Products Description

New design with 45°angle can prevent dust effectively .

The wall plate is made from high-impact ASX plastic, making for years of aurable use. Each delivers high speed of for all your high-speed applications to the desktop . Perfectly blends into the decor of your home or office. Protects and hides your network connections. Accepts all keystone inserts, standard 110 type IDC termination makes installation fast and easy .

Features and benefits

• Two ports faceplate
• 45°angle design can prevent dust effectively
• Designed for Cat5E or Cat6 performance and meet EIA/TIA specifications
• Fit fir RJ45 keystone jack outlet plate
• Packing includes the modular faceplate and two mounting screws for installation
• Material: PC or ABS
• Color: White or Ivory

Full Technical Specifications

1)The wall face use English face plate
2)Cat.6/Cat.5e module can easy to install
3)Face plate with permanment dust cap
4)Fitted with withdrawable lable
5)Adoption 45°designed,reduction the space in the bottom box
6)Material ABS high-strength resistance UV
Fore and after double desk face plates ,elegant appearance,to prevent opening of fixed screw hole
1)Design of mill finish, increase the matching with heavy current face plate
2)Face plate material fireproofing grade UL94u
3)Not including module in the packaging
4) Product dimensions:
Face plate outline border:86mm*86mm
Face plate height:7mm(over metope part)

Product material
Center face plate:ABS

Face plate outline border:ABS
Product enclosure:two M4×30 screws(please use matching bottom box)
