grey Fiber Distribution Unit Fiber Optical Distribution Frame

Spot Product Fiber Distribution Unit Fiber Optical Distribution Frame

Product Description

Feature:

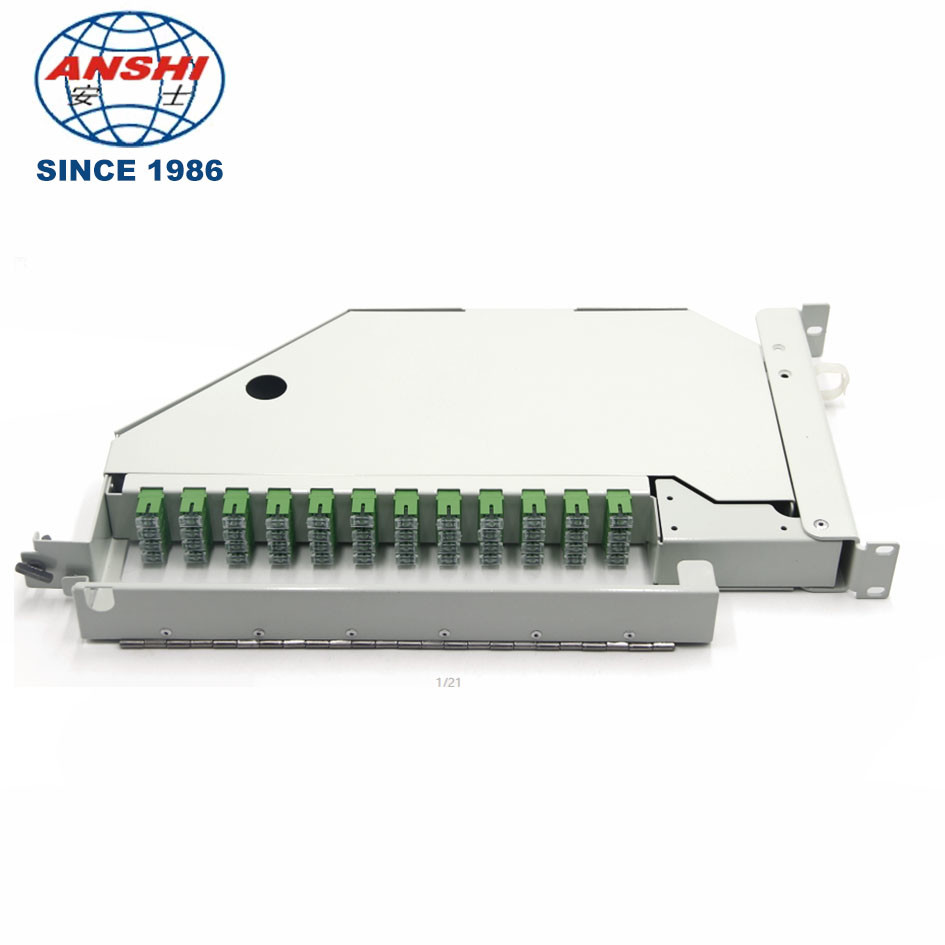

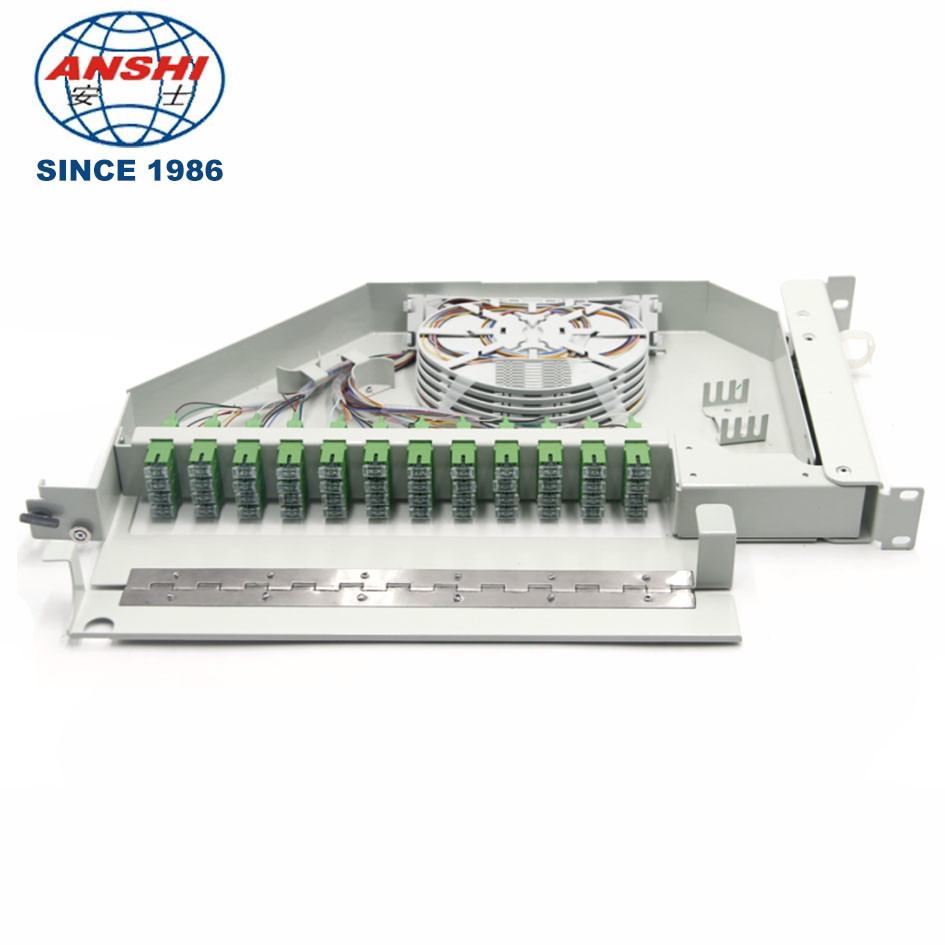

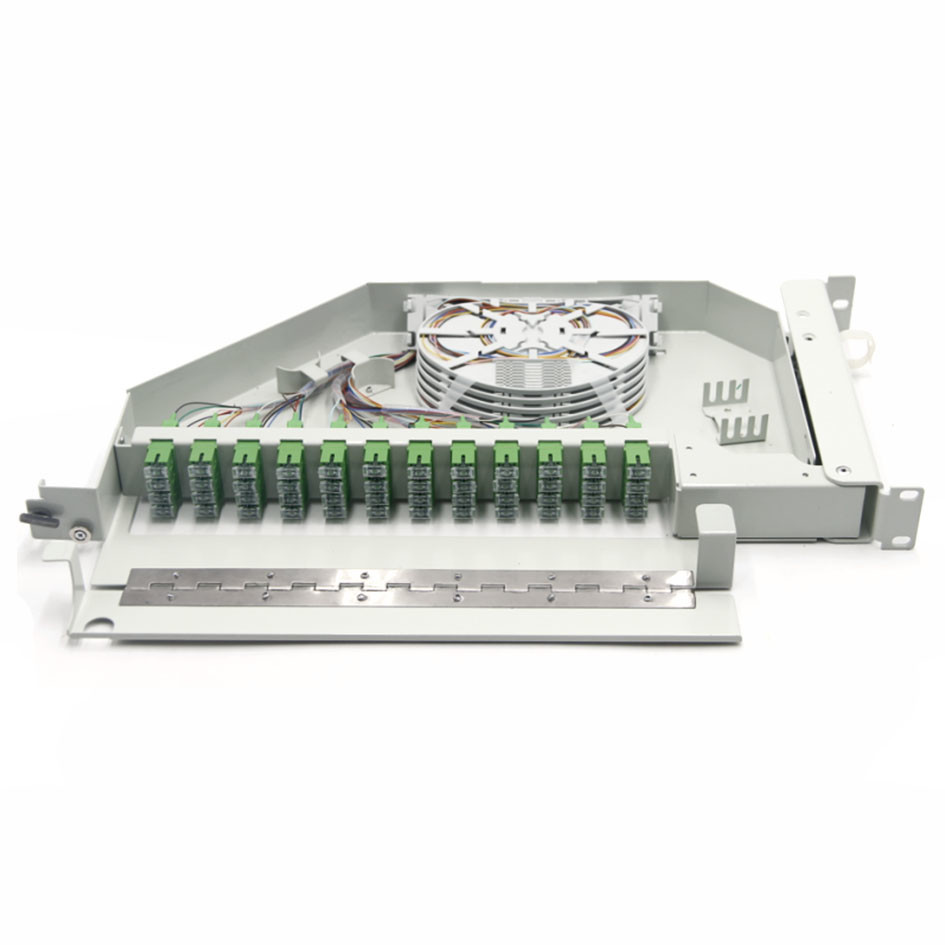

Fiber Distribution Unit is used as fiber termination enclosures to fix fiber optic cables, splice and store fibers, and patch in the cabling of a fiber-optic network.

Fiber Distribution Unit ensures fiber-optic network reliability by housing, managing, and protecting up to 24 fibers by a very compact design. Fiber Distribution Units are able to serve as a transition from feeder cable to distribution cable, interconnect or cross-connect to the optically active device.

Features:

Small dimension in the width

Adapters are installed in angle to avoid direct laser beam.

Changeable adapter panel for SC, FC, LC, etc.

Specifications:

Applicable Adapter SC, FC, LC
Capacity 48 fibers for 1 U,
Material cold rolled steel
Color Milky Grey or other appointed Color
Size 483(W)*260(D)*44(H)mm (19” 1U)
Installation Method 19” rack mount

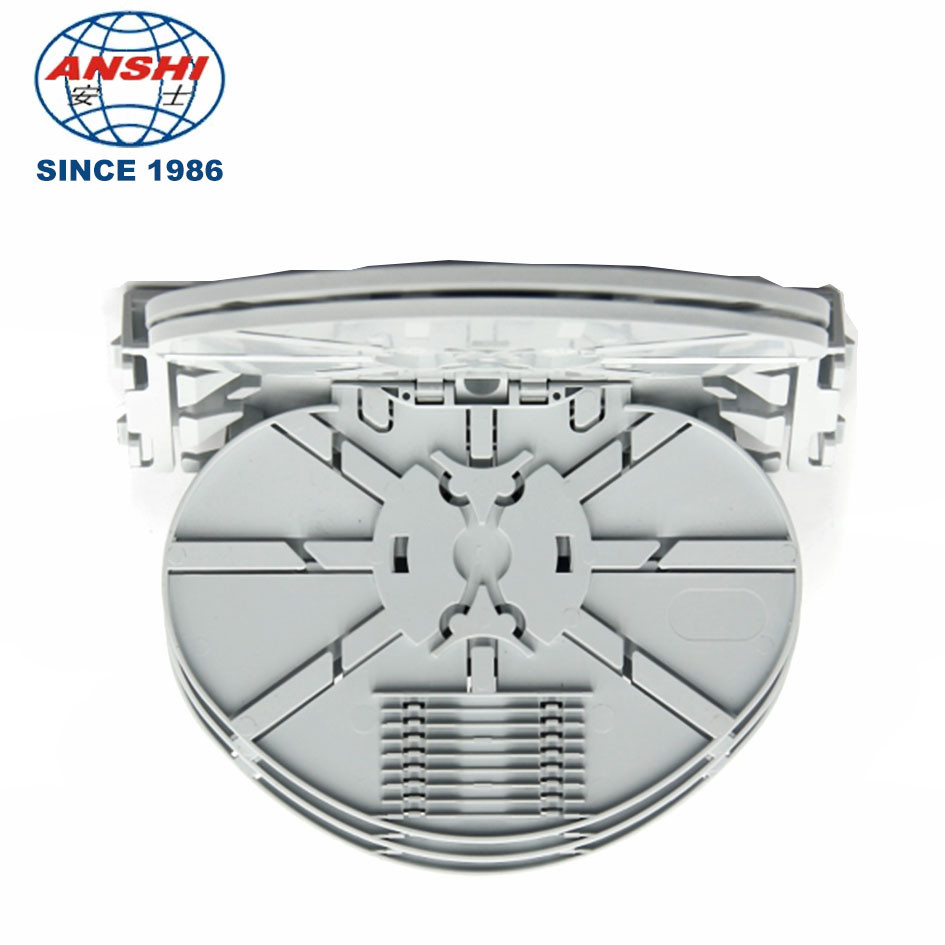

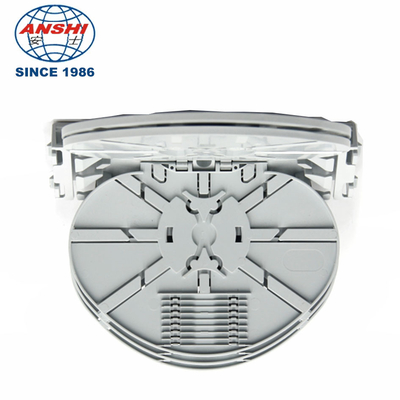

Splice Tray Capacity 12 fibers/ tray

Ordering Information: AS-FPP

Model AS-FPP

XX: Adapter None: without adapter
SC: SC/UPC

SA: SC/APC

FC: FC/UPC

FA: FC/APC

LC: LC/UPC

LA: LC/APC

XX: Pigtail None: without pigtail
9: 0.9mm

2: 2.0mm

3: 3.0mm

D: 0.9mm distribution cable

R: ribbon

XX: Fiber Capacity 12: 12 fibers
24: 24 fibers

48: 48 fibers

Note:

1, Customization is available:

Printing logo, frame material, fiber capacity, adapter type, pigtail type, frame color, etc.

2, Pictures are only for suggestion.

Pictures will be shared before order delivery.
