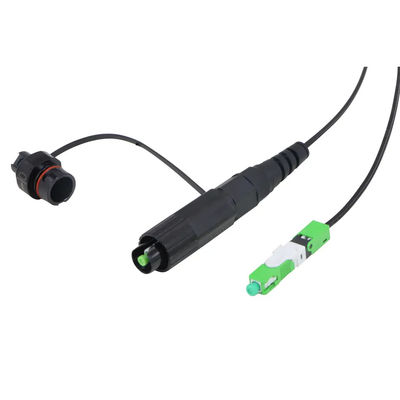

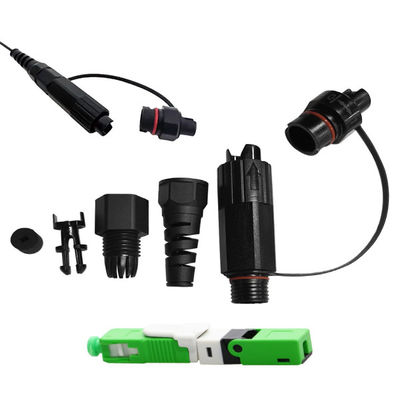

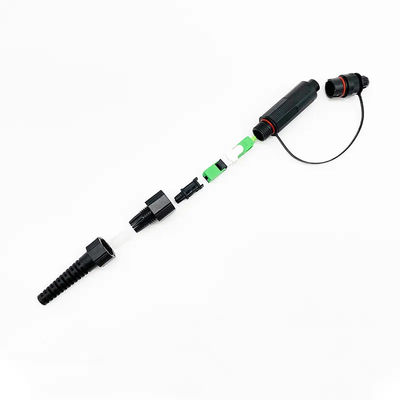

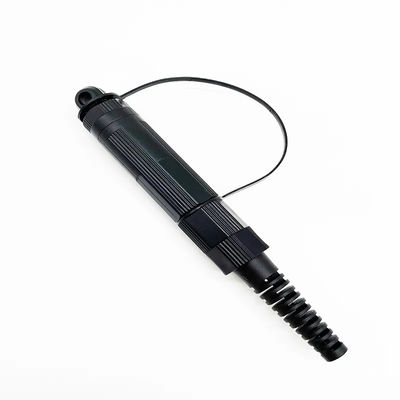

SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect

  • SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect
  • SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect
  • SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect
  • SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-FSKJT-1
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Waterproof Fast Connector Type Huawei Type
Cable Type Flat Drop Cable 3.0mm,5.0mm, Flat 2.0*3.0mm No. Of Fiber 1 Core
IP Level IP65 Feature Compatible With ESC250D, Sumitomo, FJK, Furukawa Fast Connector
Application FTTH FTTB FTTX Network OEM Welcome
Highlight

Mini-SC Waterproof Fast Connector

,

APC Waterproof Fast Connector

,

Reinforced Fiber Optic Connector
Leave a Message
Product Description

SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector quick connect







Product Description

Field assembly optical reinforced adapter provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter.



Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.



Feature

1. Compact size,easy to operate,durable.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. IP68 water and dust protection.(1M,1 hour)
5. Spiral clamping mechanism ensures long-term reliable connection.
6. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
7.Low operating temperature: - 10 ℃ ~ + 70 ℃
8. Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
9. Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.


Applications

1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.
Cable Scope
2*3.0mm flat drop cable,
Fiber Diameter
125μm ( 652 & 657 )
Coating Diameter
250μm
Mode
SM
Operation Time
about 15s(exclude fiber presetting)
Insertion Loss
≤ 0.3dB(1310nm & 1550nm)
Return Loss
≥ 50dB for UPC, ≥ 55dB for APC
Success Rate
>98%
Reusable Times
>5 times
Tensile Strength
>30 N
Temperature
-40 ~ +85 C
On-line Tensile Strength Test (20 N)
IL ≤ 0.3dB
Mechanical Durability(500 times)
IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)
IL ≤ 0.3dB



SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect 0SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect 1SC/APC Huawei Type Mini-SC Waterproof Fast Connector Reinforced Fiber Optic Connector Quick Connect 2
