FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network

  • FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network
  • FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network
  • FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network
  • FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-SPQ-FC-DIN
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Optic Adapter Material Copper
Insertion Loss <0.2dB Sleeve Ceramic
Packing 25pcs/box Or Customized Dust Cap Color Red Or Customized
Highlight

FC To DIN Fiber Optic Adapters

,

Copper Simplex Fiber Optic Adapters

,

Local Area Network Fiber Optic Connectors
Leave a Message
Product Description

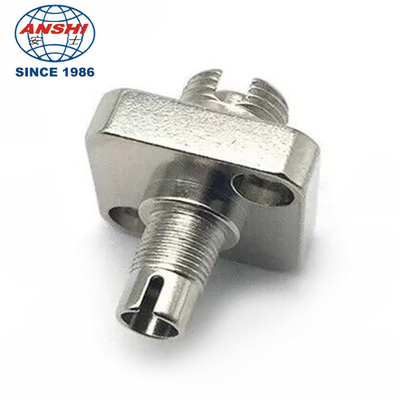

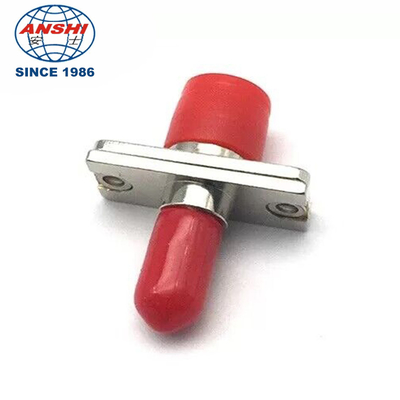

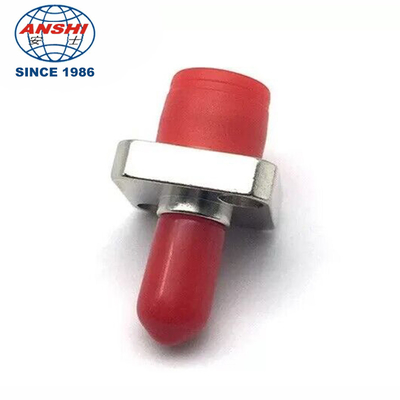

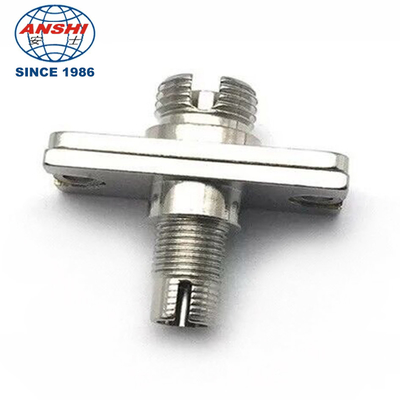

FC DIN Rectangle Fiber Optic Adapters Copper Material For Local Area Network



Description

FC-DIN Fiber Optic Adapter manufactured by ANC International Co., Limited uses copper material to ensure high quality and good apperance. It has rectangle or sqaure shape optional. It is mechanical device designed to align DIN Fiber Optic Connector and FC Fiber Optic Connector. DIIN-FC Hybrid Adapter contains the interconnect sleeve that holds the two ferrules together. DIN-FC Hybrid Fiber Adapters offer a solution for hybrid applications where the DIN and FC fiber connectors or cable assemblies need to be linked with each other.



Specification

Low insertion loss, high return loss

Good compatibility

High precision of mechanical dimensions

High reliability & stability

Ceramic sleeve

PC, APC, UPC DIN-FC Hybrid Adapter available



Features

High Precision Alignment

RoHS compliant for all DIN-FC hybrid adapter material



Usage

FTTH, FTTB, FTTC

CATV

Local Area Network

Telecommunication Networks

Equipment Test



Technical Data

Item DIN-FC
Type Multi-mode Single-mode
Optical Characteristic Operating Wavelength 850nm&1300nm 1310nm & 1550nm
Typical Insertion Loss 0.2dB & 0.2dB 0.2dB & 0.2dB
Mechanical Testing Repeatability ≤0.2dB
Exchange ≤0.2dB
Durability >1000 (Times)
Temperature Storage Temperature -25oC ~+85oC
Operating Temperature -25oC ~+85oC





FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network 0FC To DIN Simplex Fiber Optic Adapters Copper Material For Local Area Network 1
