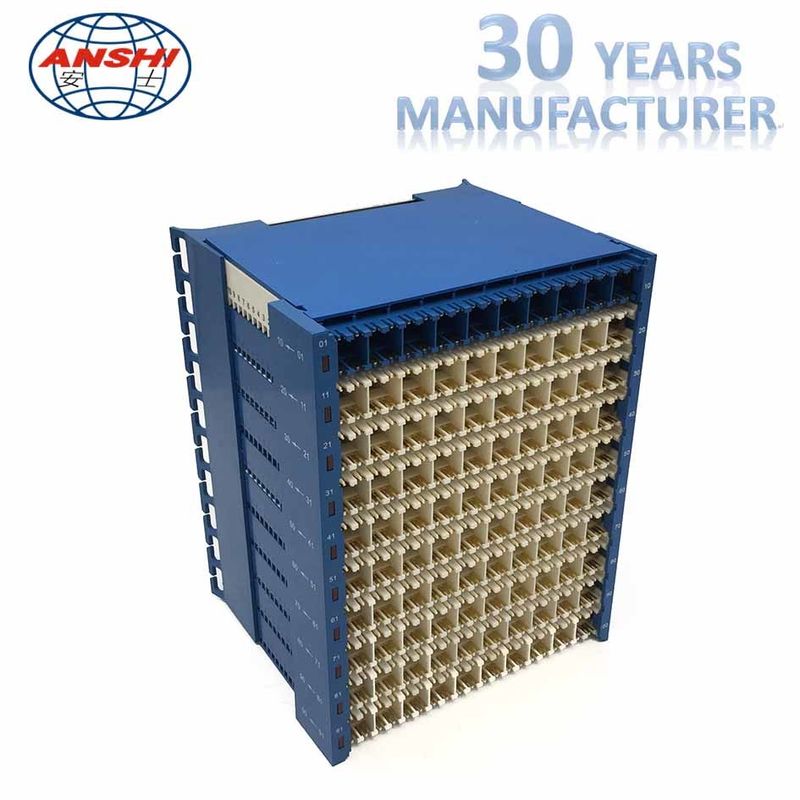

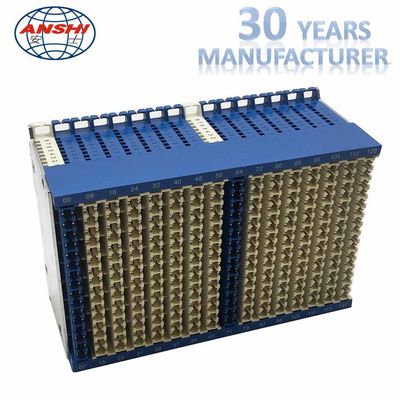

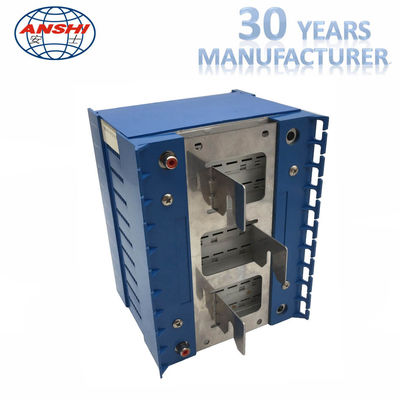

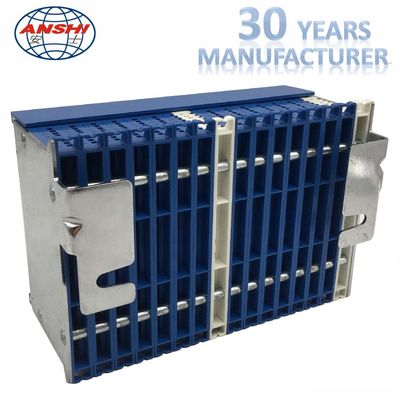

High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame

  • High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
  • High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
  • High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
  • High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
  • High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-XHW
Document AS-MDF-XHW Catalog.pdf
Minimum Order Quantity 1
Price Negotiable
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000pcs/week
Product Details
Material ABS+Phosphor Bronze Printed Silver
Capacity 100 Pair Use MDF Frame
Application Horizontal Type Protect Voltage And Current Protection
Highlight

intermediate distribution frame

,

optical distribution frame
Leave a Message
Product Description
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
MDF Main Distribution Frame High Density 100 Pairs Protection Connection Terminal Block
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 0
  • Size: 175mm x 140mm x 152mm (100 Pairs)
  • Environment condition: -5-40°C; Relative humidity <85% (+30°C); Atmospheric pressure: 70-106KPa
  • Pulling-out force: Tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
  • Anti-burn performance: PBT (UL94V-0) or anti-burn ABS (UL94V-0), combustibility achieved GB/T 5169.7-1985 standard
  • Insulated resistance: No less than 1,000M ohm between two disjunct connections under standard atmospheric pressure
  • Intermediate resistance between reed terminators: No more than 7m ohm under standard examination condition
  • Intermediate resistance: No more than 3m ohm under standard examination condition
  • Dielectric strength: According to industry standard
  • Specification: 100 pairs
  • Life: Durability 200 cycles

Accessorys:

1) Protector Unit: AS-MDF-XHW-U

2) Punch Tool: AS-MDF-XHW-T

3) Test Plug-128 Pairs Exchange Side Terminal Blcok: AS-MDF-XHW-C-S

4) Test Plug-100 Pairs Cable Side Terminal Blcok: AS-MDF-XHW-P-S

5) Open Rack High Density Frame

High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 1
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 2
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 3
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 4

High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 5

High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame 6

1 Piece/package

Safe packing

High Density MDF Specifications
Specification Dimension (mm)
1000 Pairs 2200(2000)×500×750
2000 Pairs 2200(2000)×500×750
3000 Pairs 2200(2000)×750×750
4000 Pairs 2200(2000)×1000×750
6000 Pairs 2200(2000)x1500x750
