Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box

Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box

    • Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box
    • Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box
    • Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box
    • Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box
    • Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box
  • Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ROHS, ISO9001
    Model Number: AS-ODF-CTB-4

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Supply Ability: 2000pcs/week
    Contact Now
    Detailed Product Description
    Product Name: Waterproof Terminal Box Installation: Wall Mount
    Dimension: 110*150*34 Type: SC/UPC
    Capacity: 4 Fiber / Core Application: FTTH System

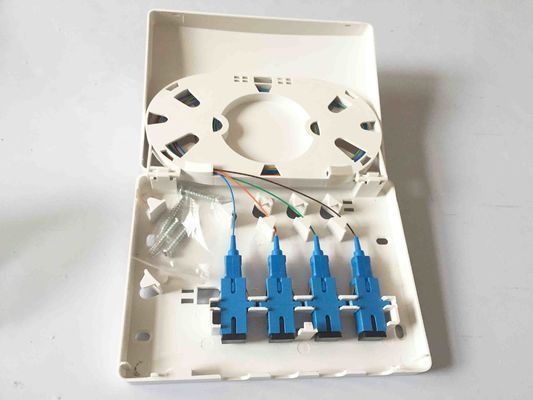

    Easy Installation Fiber Optic Termination Box , 4 Cores Cable Distribution Box with SC/UPC adaptor and pigtail

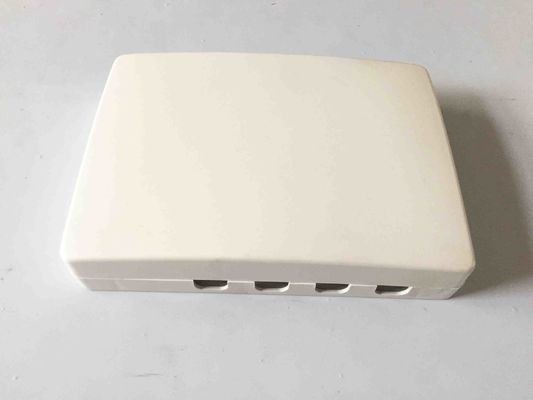

    It is FTTH mini optic terminal box , made of high quality plastic, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fiber.



    Features:

    • ABS material used ensures the body strong and light.
    • Design for indoor uses.
    • Easy installations: Ready for wall mount – installation kits provided.
    • Adapter slots used – No screws and tools needed for installing adapters.

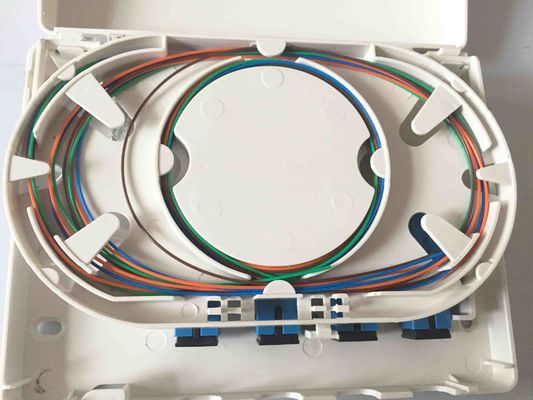

    • Space saving: Double-layer design for easier installation and maintenances:
    • Lower layer for splicing and over length fiber storage.
    • Upper layer for adapters, cross-connecting and fiber distribution.
    • Cable fixing units provided for fixing the outdoor optical cable.
    • Accommodates both cable glands as well as tie-wraps
    •  Light weight, small size, easy installation
    • The base and cover of the box adopts self-clip method, which is easy and convenient to open and close
    • Can connect/reconnect to adapters more than 200 times
    • Connector for FC, SC, ST
    • Max. Capacity: 4 fibers
    • Dimension: 110*150*34( L X W X H )
    • Weight: 0.2kg



    Environmental requirement


    Working temperature : -40℃~+85℃
    Relative humidity : ≤85% (+30℃)
    Atmospheric pressure : 70Kpa~106Kpa


    Main technical datasheet


    Insertion loss : ≤0.3db
    UPC return loss : ≥50db
    APC return loss : ≥60db
    Life of insertion and extraction : >1000 times



    Applications:



    ---suitable for Pigtail, ribbon and bunch cable connectors distribution

    ---Used for wall-mounted and rack-mounted applications



    Easy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution BoxEasy Installation Fiber Optic Termination Box , Waterproof 4 Cores FTTH Distribution Box
