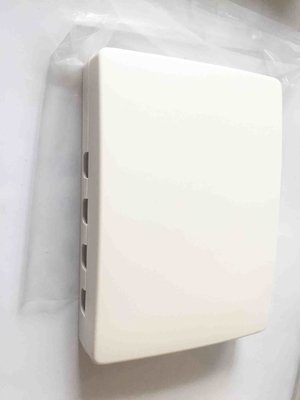

Easy Installation Fiber Optic Termination Box , 4 Cores Cable Distribution Box

Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-CTB-4
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Waterproof Terminal Box Installation Wall Mount
Dimension 110*150*34 Type SC/APC
Capacity 4 Fiber / Core Application FTTH System
Highlight

optical distribution box

,

fiber optic splitter box

Leave a Message
Product Description

Fiber Optic Distribution Box 4 cores / fibers termination box SC/APC with adaptor and pigtails



It is FTTH mini optic terminal box , made of high quality plastic, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fiber.



Features:

  • ABS material used ensures the body strong and light.
  • Design for indoor uses.
  • Easy installations: Ready for wall mount – installation kits provided.
  • Adapter slots used – No screws and tools needed for installing adapters.

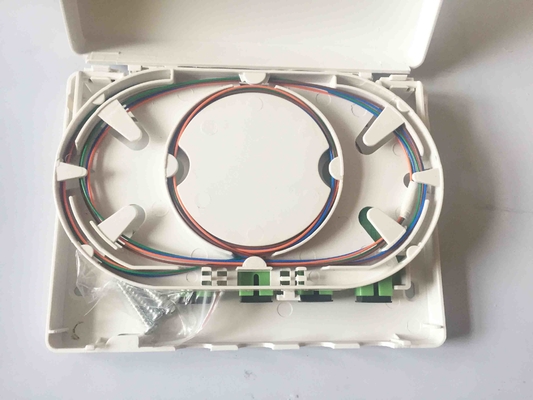

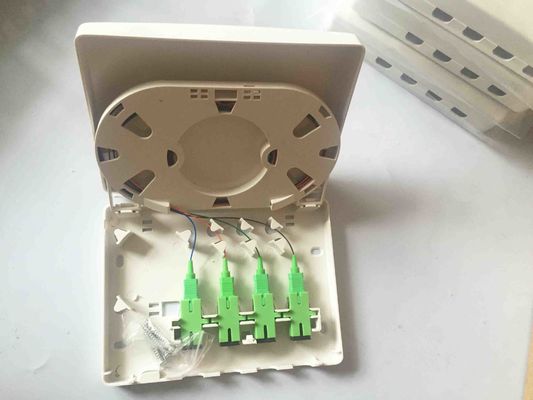

  • Space saving: Double-layer design for easier installation and maintenances:
  • Lower layer for splicing and over length fiber storage.
  • Upper layer for adapters, cross-connecting and fiber distribution.
  • Cable fixing units provided for fixing the outdoor optical cable.
  • Accommodates both cable glands as well as tie-wraps
  •  Light weight, small size, easy installation
  • The base and cover of the box adopts self-clip method, which is easy and convenient to open and close
  • Can connect/reconnect to adapters more than 200 times
  • Connector for FC, SC, ST
  • Max. Capacity: 4 fibers
  • Dimension: 110*150*34( L X W X H )
  • Weight: 0.2kg



Environmental requirement


Working temperature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa


Main technical datasheet


Insertion loss : ≤0.3db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insertion and extraction : >1000 times



Applications:

---suitable for Pigtail, ribbon and bunch cable connectors distribution

---Used for wall-mounted and rack-mounted applications
