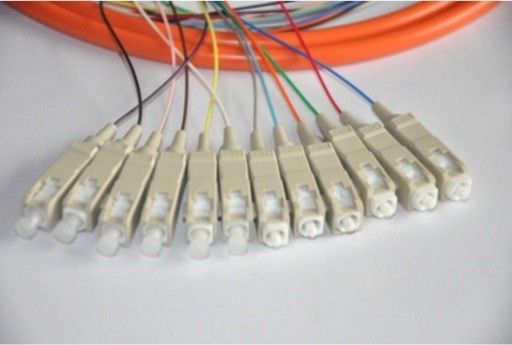

12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail

12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail

    • 12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail
    • 12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail
  • 12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ISO9001
    Model Number: AS-ODF--PG-SC/UPC

    Payment & Shipping Terms:

    Minimum Order Quantity: CAN DISCUSS
    Price: Negotiable
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Name: 12 Core Fiber Cable Return Loss: ≥50.00dB(PC) ≥65.00dB(APC)
    Connector Type: SC/UPC Length: 1m,2m,3m... Can Customize
    Fiber Type: SM/MM Tensile Strength: ≥10KGS
    Repeatability: ≤0.1 Insertion Loss: 0.3dB
    Fiber: Corning

    12 cores / fibers Multi-fiber Pigtail Fiber Optic Pigtail SC/UPC 1.5 Meter pigtail, Can be customized



    Specifications



    Fiber Optic Pigtail



    1.SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000

    2.0.9mm / 2.0mm / 3.0mm

    3.SM/MM SX/DX

    41.MM,3MM.5MM



    Technical specifications:

    12 Cores Optical Fiber Patch Cord SC / UPC 1.5 Meter Fiber Optic Pigtail

    Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
    Return Loss (dB) ≥45 ≥50 ≥60 ≥35
    Insertion Loss (dB) ≤0.2 (max≤0.3)
    Repeatability (dB) ≤0.1
    Durability(1/Matings) ≥500
    Operation Temperature (°C) -25~+70
    Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
    Fiber 9/125um, 50/125um,62.5/125um,ect
    diameter 0.9mm 2.0mm, 3.0mm etc
    Cable material PVC, LSZH
    Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
