1 * 32 Insertion Type Fiber PLC Splitter , Cassette Type Mini PLC Fiber Optic Splitter

  • 1 * 32 Insertion Type Fiber PLC Splitter , Cassette Type Mini PLC Fiber Optic Splitter
  • 1 * 32 Insertion Type Fiber PLC Splitter , Cassette Type Mini PLC Fiber Optic Splitter
  • 1 * 32 Insertion Type Fiber PLC Splitter , Cassette Type Mini PLC Fiber Optic Splitter
Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ODF-1X32FLP
Minimum Order Quantity 10
Price Negotiable
Delivery Time 10000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 1X32 Optic Plc Splitter Connector Type SC
Channel Number 32 Way Insertion Loss ≤0.20
Wavelength 1310nm/1490nm/ 1550nm Application CATV/FTTH/LAN/PON
Highlight

Fiber Optic Distribution Box

,

Outdoor Distribution Box
Leave a Message
Product Description

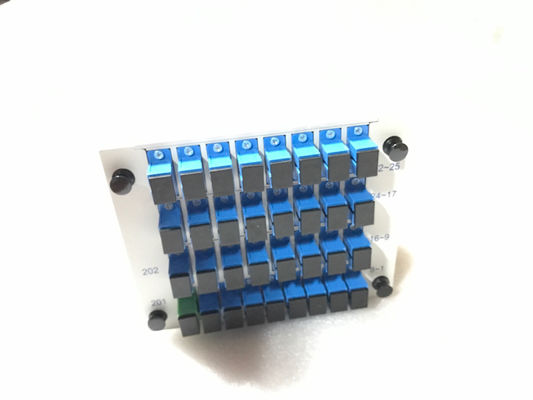

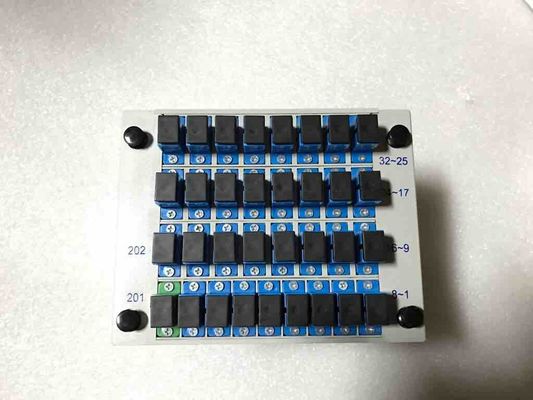

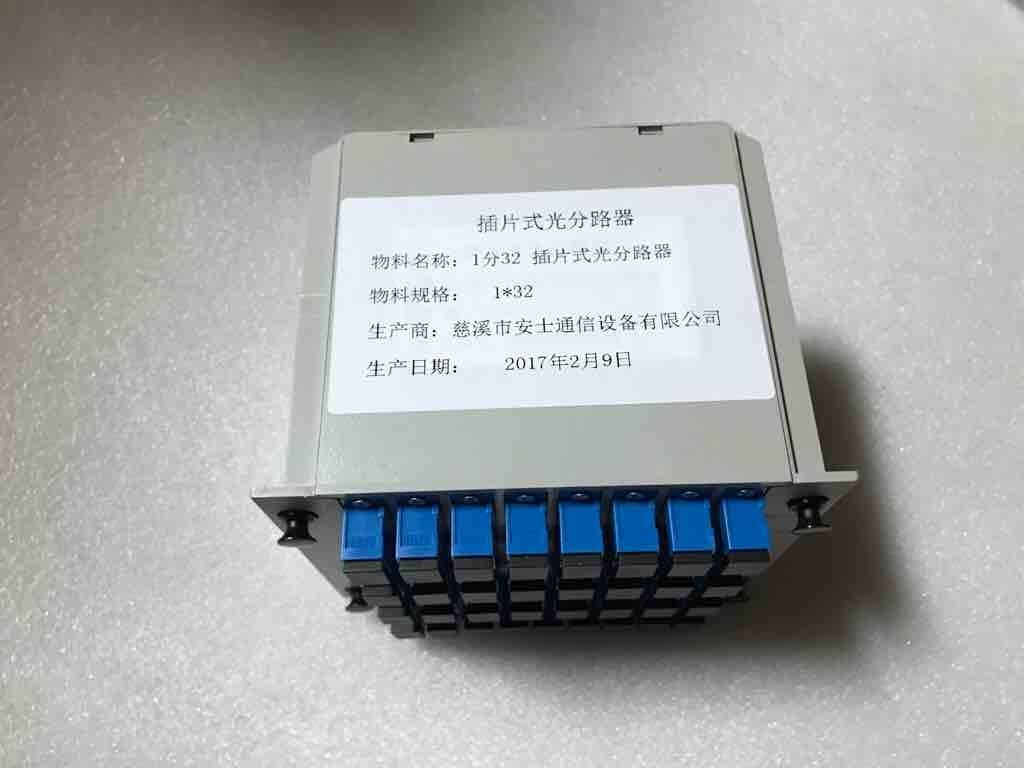

1*32 Insertion Type PLC Splitter Casette type mini Fiber optic PLC splitter





Product characteristics

PLC splitter has the advantages of small size, beautiful appearance. According to customer needs to provide different types of connection. It is the standard for SC. PLC splitter is quick installation, reliable performance and stable technical index of the optical system to comply with industry standards YD/T893. The structure is simple, the processing is easy ,the uniformity is good. PLC splitter is particularly suitable for passive optical network application and installation in the 19 inch standard rack. When it is in the branch of the optical fiber, the installation of equipment is provided to the junction box, and in the branch of the fiber into the home, the customer specified by the customer equipment installed.



Applications



1. Fiber Optical Communication Systems

2. Optical Fiber CATV

3. Passive Optical Network (PON)

4. Fiber Optic Amplifiers

5. Fiber Optic Access Networks/LAN

6. Monitoring Systems

7. Optical Fiber Sensor



Product details

The PLC Splitter (1x4; 1x8; 1x16; 1x32; 2x16; 2x32)



Specifications

Parameters 1x4 1x8 1x16 1x32 1x64
Operating Wavelength(nm) 1260-1650
Insertion Loss (dB) Max(S/P) 7.4/7.2 10.7/10.5 13.7/13.5 16.9/16.5 21
Loss Uniformity (dB) Max 0.6 0.8 1.2 1.7 2.5
Return Loss (dB) Min(S/P) 50/55 50/55 50/55 50/55 50
PDL (dB) Max 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55
Pigtail Length(m) 1.2(±0.1) or customer specified
Fiber Type SMF -28e or customer specified
Wavelength Dependent Loss(dB) 1 1 1 1 1
Temperature Stability 0.6 0.6 0.8 1 1
(-40~85 ℃)(dB)
Operating Temperature( ℃) -20~75
Storage Temperature( ℃) -40~85


The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
