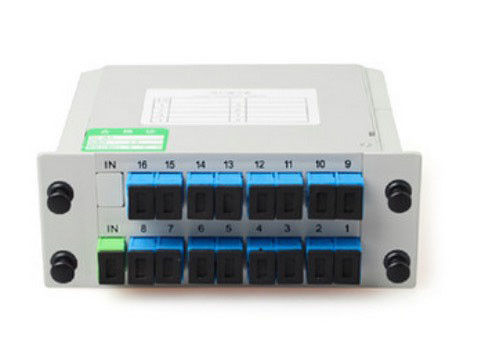

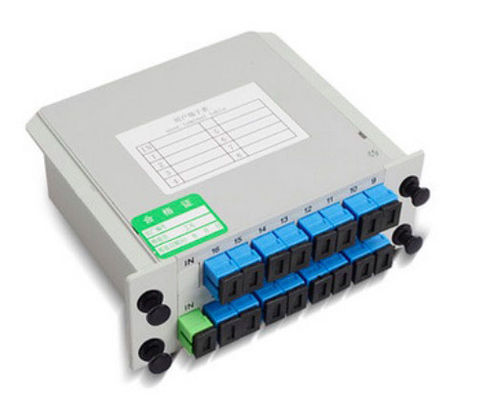

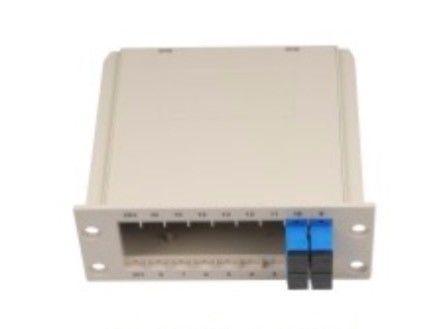

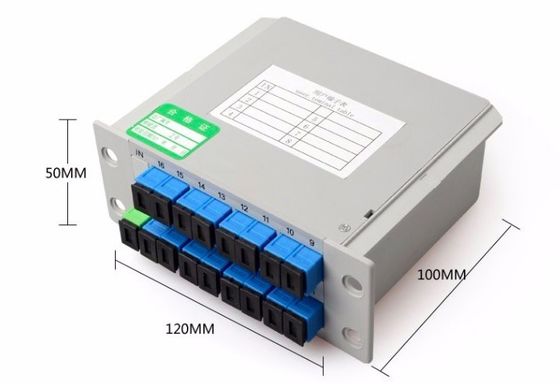

Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter

Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter

    • Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter
    • Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter
    • Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter
    • Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter
    • Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter
  • Casette Type FTTH Distribution Box 1 * 16 Insertion Type Fiber Optic PLC Splitter

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ISO9001, SGS
    Model Number: AS-ODF-1X16FLP

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiable
    Delivery Time: 10000pcs/week
    Contact Now
    Detailed Product Description
    Name: 1X16 Optic Plc Splitter Connector Type: SC
    Channel Number: 16 Way Insertion Loss: ≤0.20
    Wavelength: 1310nm/1490nm/ 1550nm Application: CATV/FTTH/LAN/PON

    1*16 Insertion Type fiber optic PLC Splitter FTTH Distribution Box Casette type mini Fiber optic PLC splitter



    Applications

    1. Fiber Optical Communication Systems

    2. Optical Fiber CATV

    3. Passive Optical Network (PON)

    4. Fiber Optic Amplifiers

    5. Fiber Optic Access Networks/LAN

    6. Monitoring Systems

    7. Optical Fiber Sensor



    Product details

    The PLC Splitter (1x4; 1x8; 1x16; 1x32; 2x16; 2x32)



    Specifications

    Parameters 1x4 1x8 1x16 1x32 1x64
    Operating Wavelength(nm) 1260-1650
    Insertion Loss (dB) Max(S/P) 7.4/7.2 10.7/10.5 13.7/13.5 16.9/16.5 21
    Loss Uniformity (dB) Max 0.6 0.8 1.2 1.7 2.5
    Return Loss (dB) Min(S/P) 50/55 50/55 50/55 50/55 50
    PDL (dB) Max 0.2 0.3 0.3 0.3 0.4
    Directivity (dB) Min 55 55 55 55 55
    Pigtail Length(m) 1.2(±0.1) or customer specified
    Fiber Type SMF -28e or customer specified
    Wavelength Dependent Loss(dB) 1 1 1 1 1
    Temperature Stability 0.6 0.6 0.8 1 1
    (-40~85 ℃)(dB)
    Operating Temperature( ℃) -20~75
    Storage Temperature( ℃) -40~85


    The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
