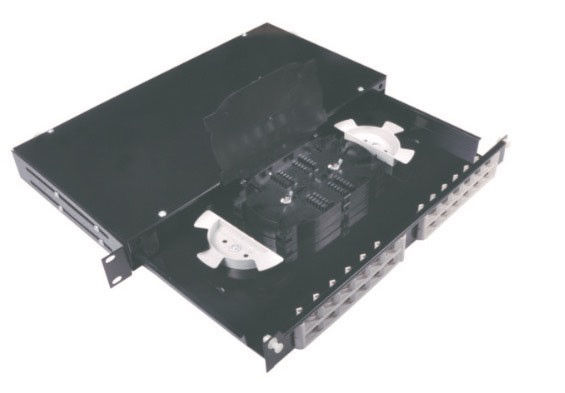

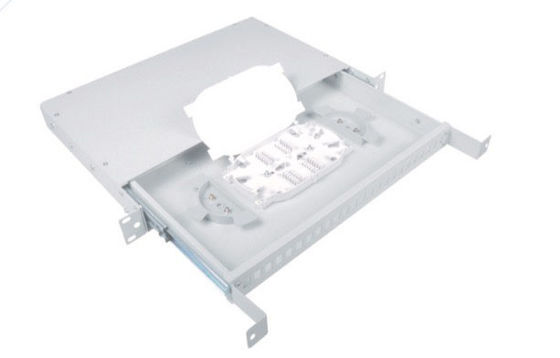

FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel

FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel

    • FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel
    • FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel
  • FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ROHS, ISO9001
    Model Number: AS-ODF-FPP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: Negotiable
    Supply Ability: 10000PCS/WEEK
    Contact Now
    Detailed Product Description
    Name: Fiber Optic Patch Panel Material: Iron
    Type: Drawer Type High: 1u
    Adapter: FC, SC, ST, LC (Can Be Customized) Capacity: 24core
    Install: 19" Rack Color: Customizable

    Optical Distribution Frames ODF fiber patch panel , Fiber Optic Terminal Box rack mounted



    Features:


    1)  19" standard frame is used
    2)  Designed by full modulization:
    a)  Unit box has such functions as optical fiber fusion, tray storing and
    distribution
    b)  Each fusion module can be singly taken out to meet the demands for
    operating frame
    3)  Optical cable, pigtail fiber and patch cords can be clearly monitored
    4)  Convenient operation can still be guaranteed even though the capacity
    has reached its maximum
    5)  Such adaptors as FC, SC can be installed by the fusion module
    6)  Working temperature: -5 – 40°C
    7)  Relative humidity: ≤85% (30°C)
    8)  Air pressure: 70 - 106kPa
    9)  Standard working wavelength: 850nm, 1,310nm, 1,550nm
    10)  Connector loss: ≤0.5dB
    11)  Back wave loss:
    a) PC: ≥40dB
    b) UPC: ≥50dB
    c) APC: ≥60dB
    12)  Resistance to voltage between high-voltage protection ground and
    frame: ≥3KV (DC) / 1min no puncture or arc
    13)  Insulation resistance between high-voltage protection ground and
    frame: ≥1,000m&Omega / 500V (DC)
    14)  Life: 1,000 times





    Application:



    Telecommunications subscriber loop



    Fiber to the home (FTTH)



    LAN/WAN



    CATV

    Properties:

    • Suitable for the protective connection between cables and pigtails
    • Suitable for the connection between optical cables and optical communication device
    • unique structure, easy installation, for indoor use

    Classification:



    Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

    • capacity: 12,24,32,48,64,72,96 splices
    • 19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
    • Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
    • Suitable for ribbon and bunchy fiber cable

    Parameter :



    Environmental temperature: -25 - 55°C
    Relative humidity: <85%(when the temperature is below 30°C)
    Atmosphere pressure: 70~106Kpa
    Insulating resistance: >2×104 MΩ/500VDC
    Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.



    FTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution PanelFTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution PanelFTTH Fiber Optic Terminal Box , Drawer Type Rack Mounted Optical Distribution Panel
