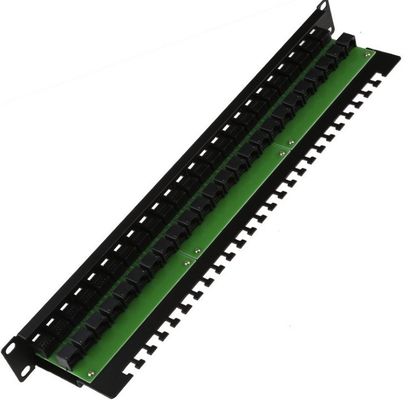

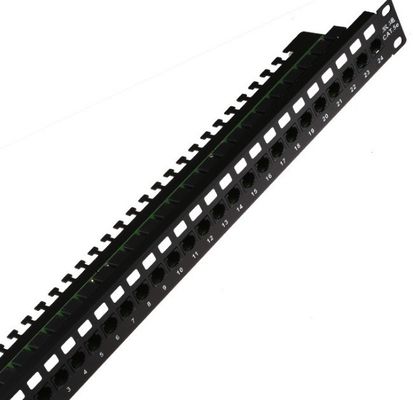

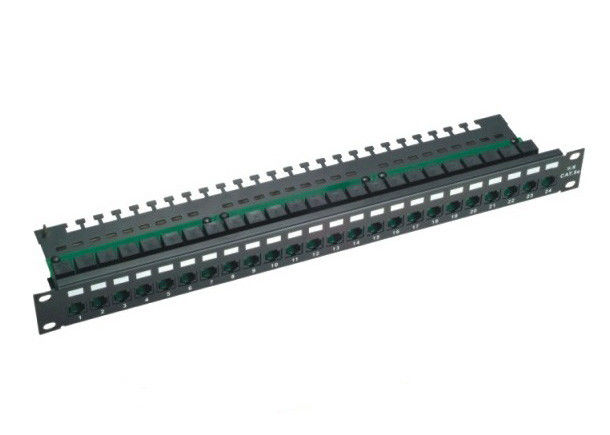

Black 24 Port Cat5e Patch Panel , UTP Unshielded Patch Panel For Networking

Black 24 Port Cat5e Patch Panel , UTP Unshielded Patch Panel For Networking

    • Black 24 Port Cat5e Patch Panel , UTP  Unshielded Patch Panel For Networking
    • Black 24 Port Cat5e Patch Panel , UTP  Unshielded Patch Panel For Networking
    • Black 24 Port Cat5e Patch Panel , UTP  Unshielded Patch Panel For Networking
  • Black 24 Port Cat5e Patch Panel , UTP  Unshielded Patch Panel For Networking

    Product Details:

    Place of Origin: ZHEJIANG, CHINA
    Brand Name: ANSHI
    Certification: SGS, DAS, ISO9001
    Model Number: AS-PL-KA24ST

    Payment & Shipping Terms:

    Minimum Order Quantity: 300
    Price: Negotiable
    Supply Ability: 5000 Pieces Per Week
    Contact Now
    Detailed Product Description
    Material: Cold Roll Steel Color: Black
    Category: CAT5e, RJ45, UTP Size: 19'', 1U
    Type: Pass Thru Application: Networking; Cabling

    24 Port CAT5e Pass Through UTP  unshielded PATCH PANEL



    Features and advantages of patch panel:

    • Design to mount to any standard 19" rack or cabinet
    • 24 -port Cat 6 unshielded Patch panel
    • Space saving, high-density 1U
    • Black Electrostatic Powder-Coated Steel: phosphor bronze with tin plating over nickel . Meet or exceed the requirement of ANSI /TIA/EIA568B.2
    • Use keystone jacks and keystone inserts to configure your panel to accommodate a variety of schemes
    • Sturdy Aluminum Plate around RJ 45 Jacks
    • Phosphor bronze with 6-50 micro inches gold plated
    • Available with T568 A. T568 B wiring pattern and meeting the
    • requirement of Cat 6 standard
    • Color Coded TIA/EIA 568A (international) and 568B (AT&T Standard)
    • Wiring For Easy Installation
    • Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires
    • Metal sheet: Corrosion resistant steel
    • Plastic: fire self -extinguish high impact plastic



    1With Cat5e keystone modules used for 19"cabinet , modularization design ,
    2Keystone jack to keystone jack, Pass-thru patch panel.
    3Contact pin: phosphor bronze and gold plating (20-50uinch), mating durability not less than 750 cycles
    4Anti-burn performance: plastic part made from PPO and PC, meeting the international standard
    5Intermediate resistance: no more than 2.5m ohm in normal atmosphere pressure (not including bulk resistor)
    6Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
    7The intensity of anti-currency: DC 1,000V (AC,700V) No puncture and flash-over phenomenon in one minute. Accord with industry standard
    8Label: clear label to ensure easy to manage
    9Standard: designed by international ISO/IEC11801 and TIA/EIA568
    10Adopt special IDC,suitable for use both LSA insertion tools and 110 type impact tools,180 wire termination.

    Cat5e/Cat6 19" UTP Patch Panel, 3P approved



    Black 24 Port Cat5e Patch Panel , UTP  Unshielded Patch Panel For Networking
