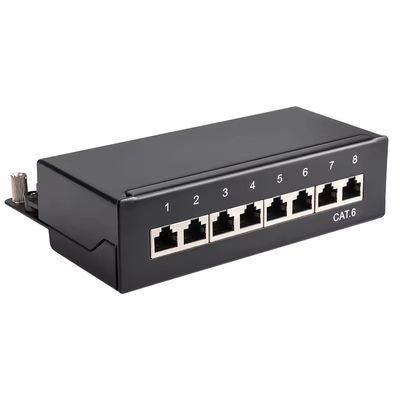

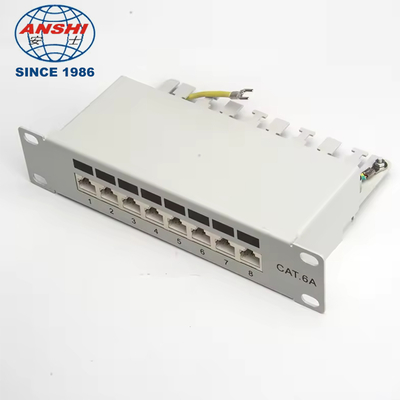

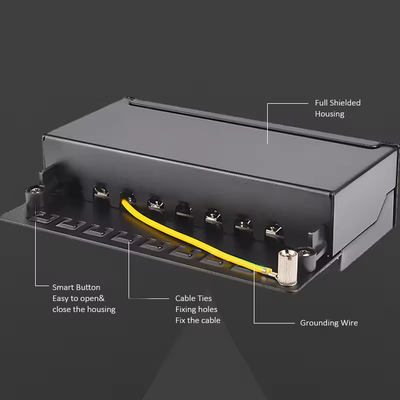

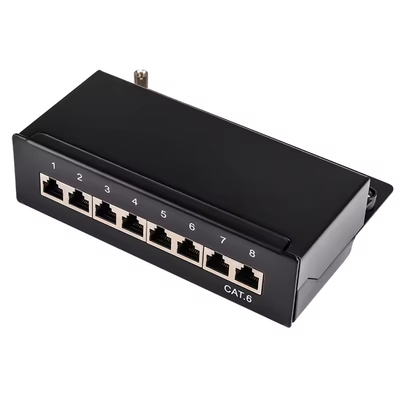

White Krone IDC Rack Mount Patch Panel Cat5e 8 Port Shielded Patch Panel FTP / STP

White Krone IDC Rack Mount Patch Panel Cat5e 8 Port Shielded Patch Panel FTP / STP

White Krone IDC Rack Mount Patch Panel Cat5e 8 Port Shielded Patch Panel FTP / STP

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, DAS, ISO9001
Model Number: XL-4018C-1

Payment & Shipping Terms:

Minimum Order Quantity: 300 pcs, CAN Negotiation
Price: Negotiable
Supply Ability: 5000 Pieces Per Week
Contact Now
Detailed Product Description
Material: Cold Roll Steel Color: Black
Category: CAT5, RJ45, STP(shielded ) Size: 19'', 1U
Type: Krone IDC Port: 8 Port
Shielded: STP, FTP Application: Networking, Telecommunication

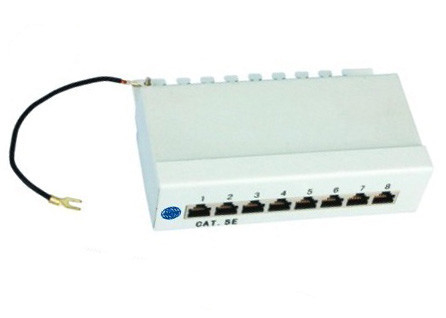

8 Port Cat5e Krone-IDC FTP/STP (Shielded)Patch Panel, White






Specification

Housing

1. cold rolled steel

2. ABS

PCB

1. FR4 1.6mm(0.04") thickness.

2. 6 layers.

Contact

1. PC Ul94V-0.

2. Phosphor bronze: 0.45mm(0.018") Diameter.

3. Gold plating: 3 U"/0.0762um to 50 U"/1.27um.

Electrical

1. According to UL 1863.

2. Current rating: 1.5 Amp Max.

3. Voltage rating: 150 Volts.

4. Contact resistance: 20 m-ohm.

5. Insulation Resistance: 500M-ohm.

6. Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min.

Standard

1.Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.

2.Meet TIA/EIA TSB-40.

3.Meet ISO/IEC Generic Cabling Standard 11801

4.Meet CENELEC Generic Cabling Standard EN50173

Performance Pass FLUKE test
