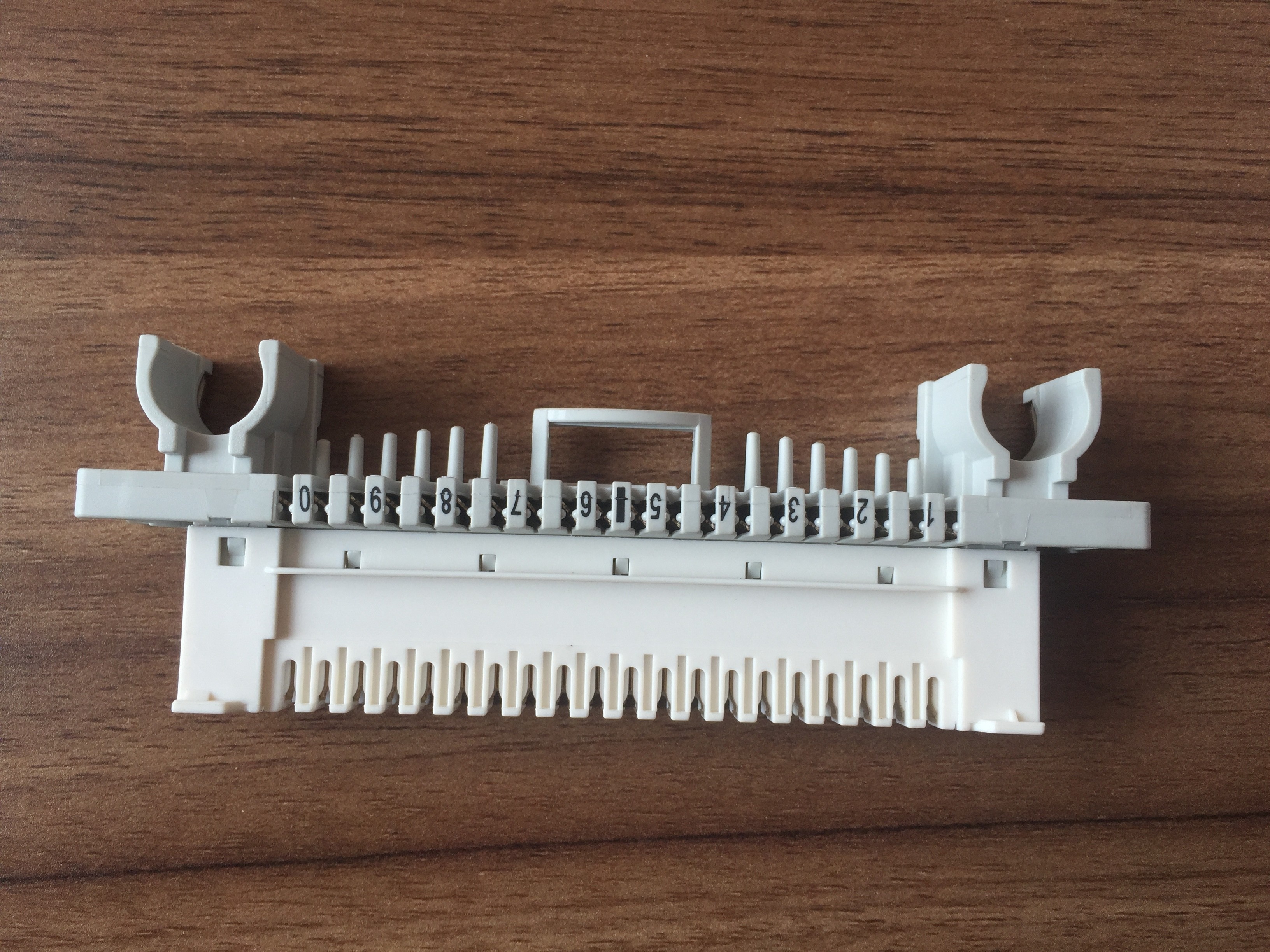

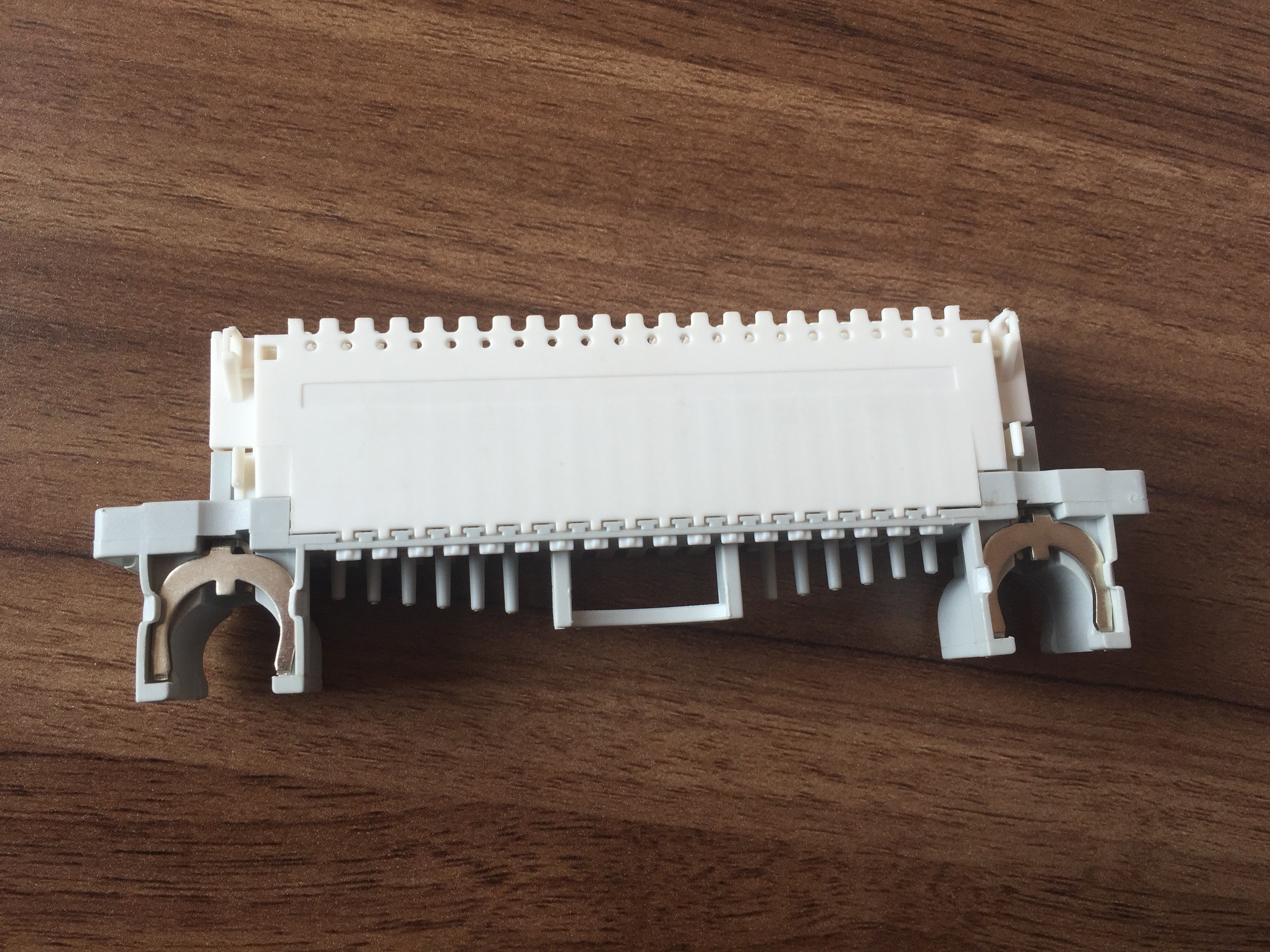

White / Grey LSA PLUS Krone NT Module , Profile Mount Krone Connection Module

White / Grey LSA PLUS Krone NT Module , Profile Mount Krone Connection Module

    • White / Grey LSA PLUS Krone NT Module , Profile Mount Krone Connection Module
    • White / Grey LSA PLUS Krone NT Module , Profile Mount Krone Connection Module
  • White / Grey LSA PLUS Krone NT Module , Profile Mount Krone Connection Module

    Product Details:

    Place of Origin: ZHEJIANG, CHINA
    Brand Name: ANSHI
    Certification: ISO9001, CNACL, SGS, DAS
    Model Number: XL-011NT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pcs
    Price: Negotiable
    Packaging Details: CARTON:53*24*24CM
    Supply Ability: 10000 pcs per week
    Contact Now
    Detailed Product Description
    Material: ABS(94 V0) Or PBT Color: White/Grey
    Contact: Iron, Brass Or Bronze Application: Telecommunication
    Type: NT Module Installation: Back&profile Mount

    10 Pairs LSA-PLUS Krone NT Module



    Features:


    1) Temperature: -5 - 40°C
    2) Relative humidity: <85% (+30°C)
    3) Atmospheric pressure: 70 106KPa
    4) Material: stainless steel and cuprum, cuprum gold plating over nickel
    5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
    combustibility of GB/T 5169.7-1985 standard
    6) Construction features: adopts modularization design, elegant
    outlook and high endurance
    7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
    force not less than 25N
    8) Intermediate resistance between reed terminators: no more than 7m
    (ohm between intermediate reeds under standard examination
    condition)
    9) Intermediate resistance: no more than 3m ohm under standard
    examination condition
    10) Performance impedance: 120Ω (balance)
    11) Work rate: 2mb/s
    12) Insulation resistance: 1,000mΩ / 500V (DC)
    13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
    14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
    15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
    16) Back wave loss: ≥18dB (50kHz - 210MHz)
    17) Life: 200 cycles





    Technique Characteristics:



    The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.



    The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.



    Mechanical Performance Insertion force : 40~75N
    Pull Out Force : F≥25N(axial) F≥7.5N(radial)
    IDC Life : 200 times(20-26 AWG Solid wire) minimum
    Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
    Environment Characteristic Storage Tempreture: 40 to 70°C
    Operating Temperature : 10 to 60°C
    Relative Humidity: 95%, noncondition
    Electrical Performance Insulation resistance: 1000 Mohms minimum
    Contact resistance:7 mohms maximum

    Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
