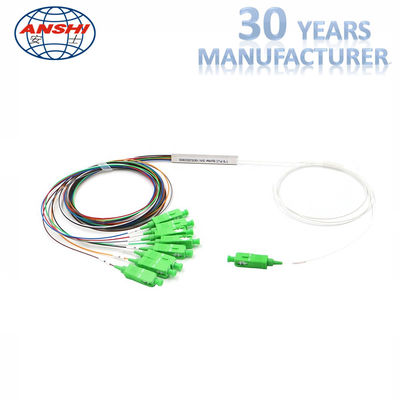

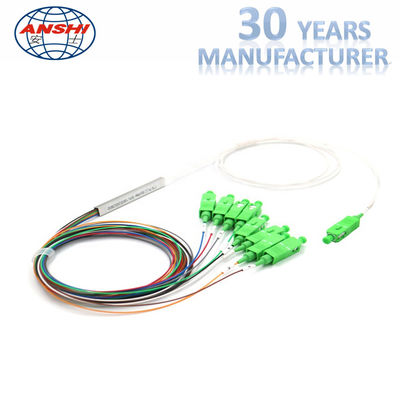

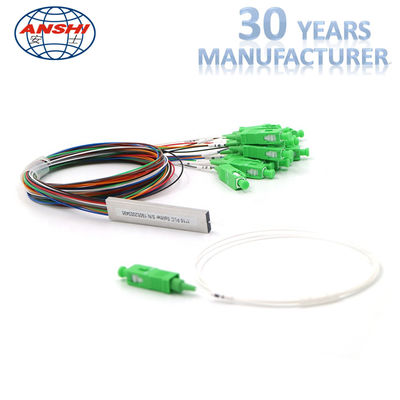

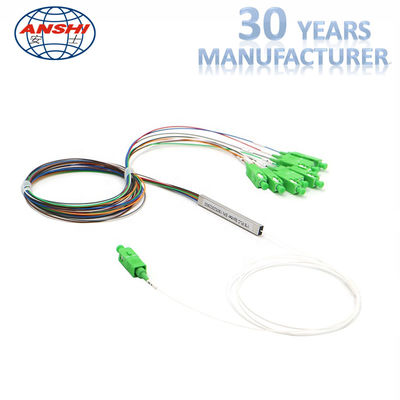

Mini PLC 1x8 PLC Steel Tube Splitter With SC APC Connector Good Light Uniformity

Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ODF-1X8FLP
Minimum Order Quantity Can Discuss
Price Negotiable
Delivery Time 10000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 1X8 Optic Plc Splitter Connector Type SC/APC
Channel Number 8 Way Insertion Loss ≤0.20
Wavelength 1310nm/1490nm/ 1550nm Application CATV/FTTH/LAN/PON
Highlight

Fiber Optic Distribution Box

,

Outdoor Distribution Box

Leave a Message
Product Description

Mini PLC 1x8 plc steel box splitter with SC APC connector







PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.

Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet "YD/T1117-2001 All optical fiber branching device technical conditions","YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter"etc, and are certified by TLC for network deployment.



Parameters 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability 0.4 0.4 0.4 0.5 0.5 0.5
(-40~85 ℃)(dB)
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4
Module Dimension (mm) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18
Mini-Module Dimension (mm) 50×7×4 50×7×4 50×7×4 60×12×4 80×20×6 100×40×6



Features
1) Can be continuously covered with different fibers
2) Full fiber core structure
3) Can be resued
4) Fiber types optional
5) Low additional loss
6) Low insertion loss
7) 2*2,1*2,1*4,....1*128 types optional,etc
Application
1) Optical Signal Distribution
2) Data Communications
3) Lan and CATV System
4) FTTX Deployment
5) FTTH Network
6) Passive Optical Networks (PON)
7) Measuring System and Laser System
8) DWDM and CWDM Systems
