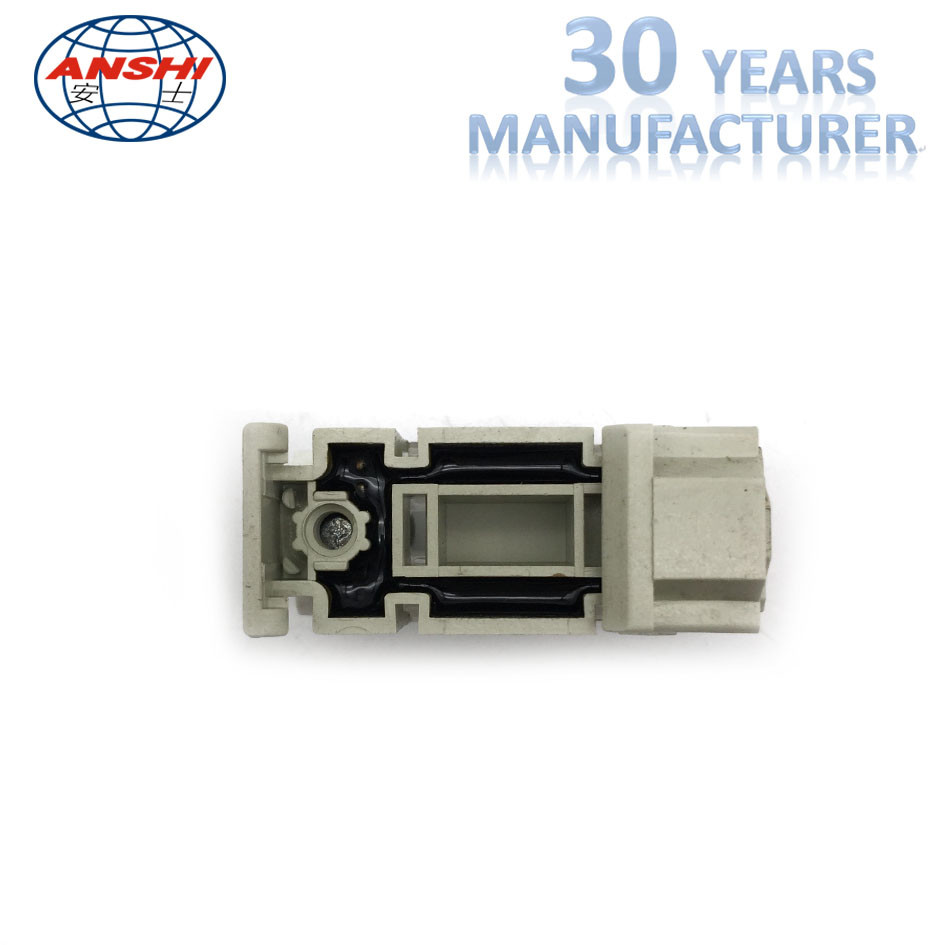

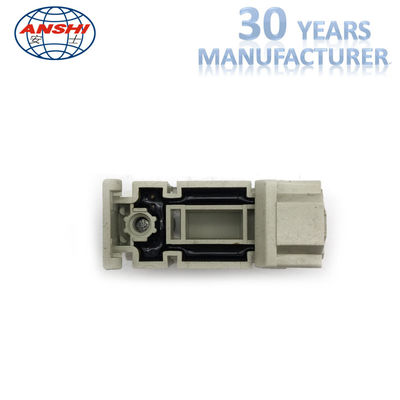

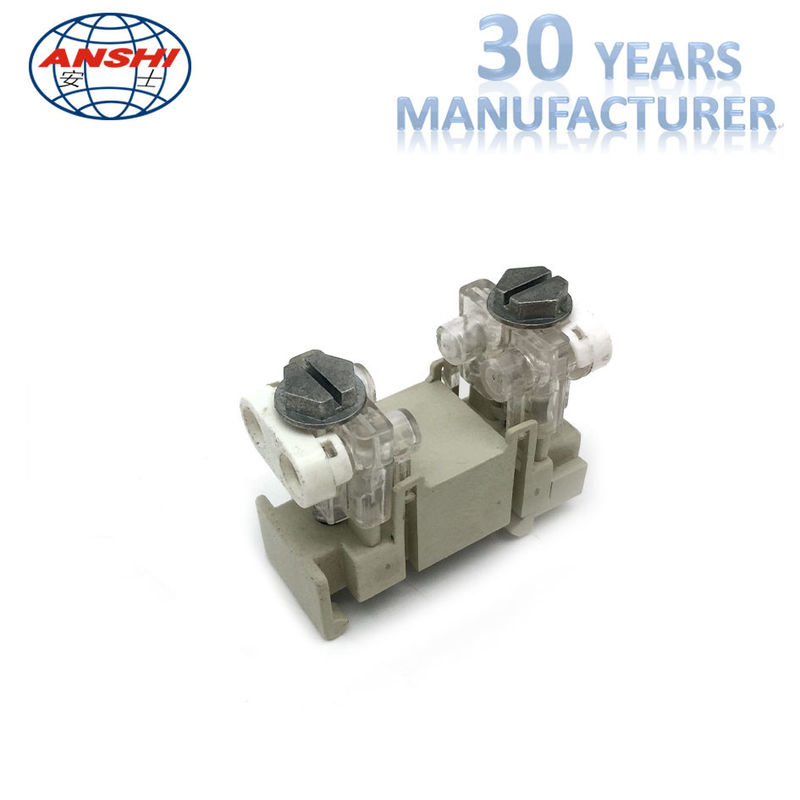

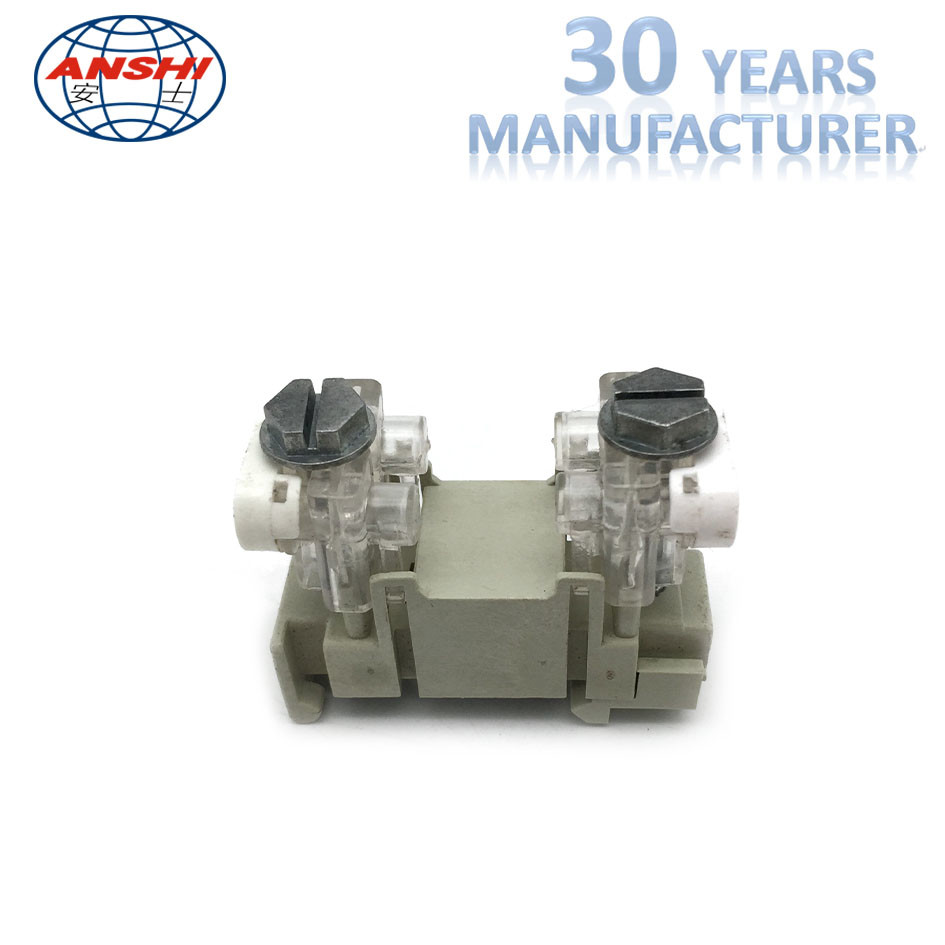

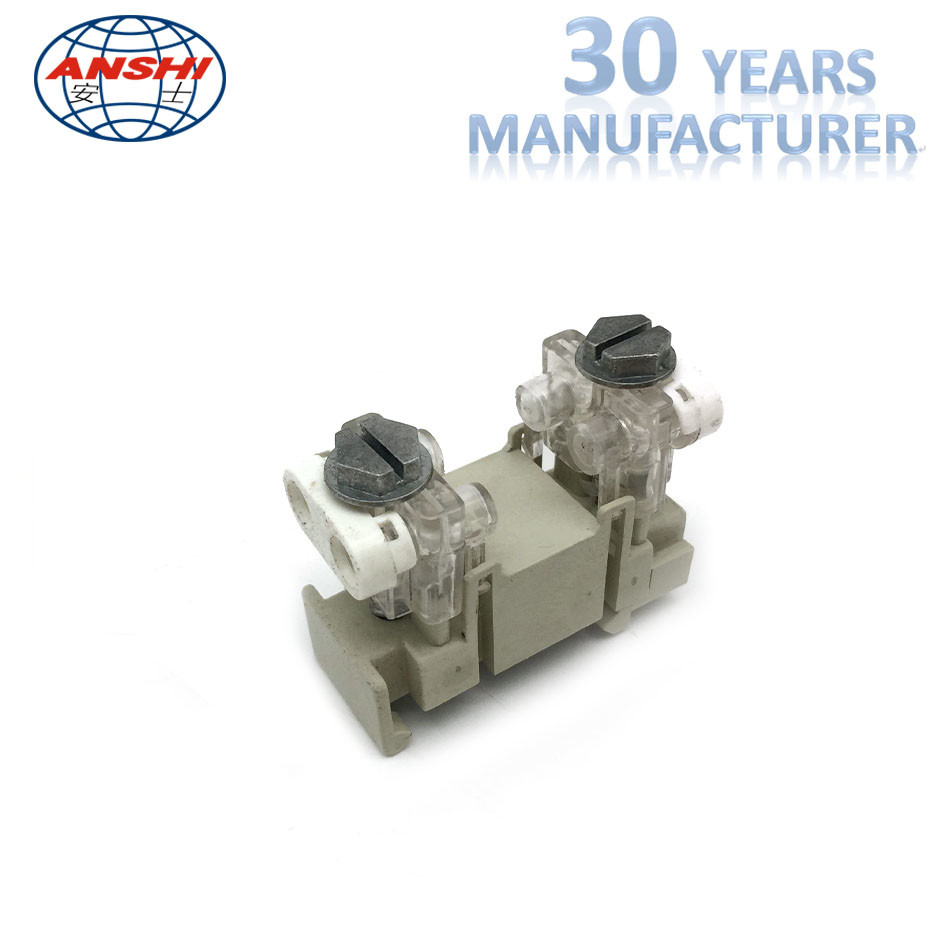

One Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved

One Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved

    • One Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved
    • One Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved
    • One Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved
  • One Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ROHS, ISO9001
    Model Number: AS-STB-W

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: Negotiable
    Supply Ability: 5000pcs/week
    Contact Now
    Detailed Product Description
    Name: VX Module Environment Condition: 5 - 40 Degree Celsius ,Relative Humidity <85% (+30 Degree Celsius),Atmospheric Pressure, 70-106KPa
    Plate: Silver 20-40uinch Pulling-out Force: Not Less Than 25N
    Standard: GB/T 5169.7-1985 Material: Pc
    Protection: Without Capacity: One Pair

    1pair STB Module Without Protection , VX Terminal Stubbed Block





    Description



    The module of the connection of family STB is intended for the joint between the cable pair based on the side of commutation station and the distributive pair.

    It is 5- polar insertable module for provision of through connection and guarantee of a number of other different functions.

    The end fitting of wires is not disrupted with turning off of insertable module, but is ensured the possibility of testing cable system beside any of both sides.
    The module of connection is established beyond the longitudinal tire, made from the stainless steel, which corresponds to standard DIN. Module can be established beside different types of housings, before different quantities. Compactness ensures the small size of base to article (with width only of 2 cm).





    One Pair STB Module Without Protection Compactness VX Module ISO 9001 ApprovedOne Pair STB Module Without Protection Compactness VX Module ISO 9001 Approved
