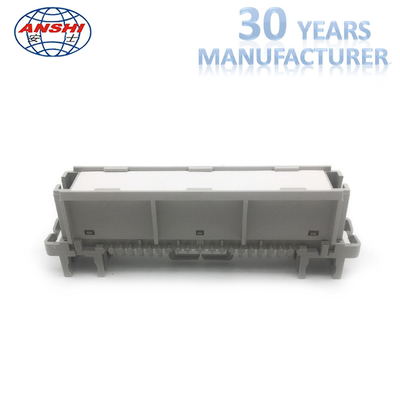

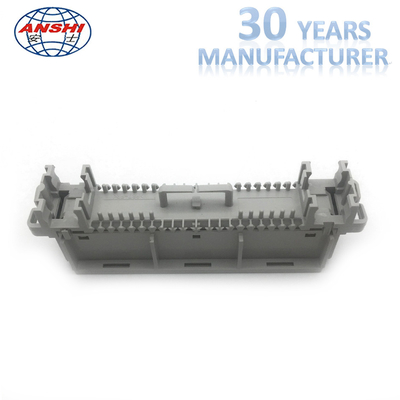

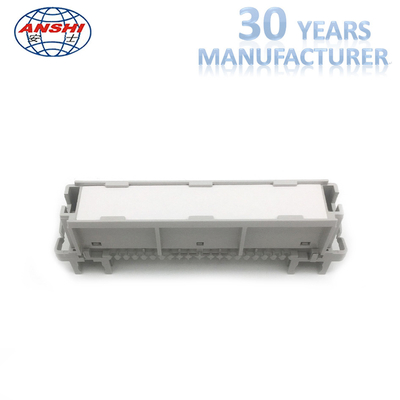

Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type

Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type

    • Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type
    • Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type
    • Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type
  • Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type

    Product Details:

    Place of Origin: ZHEJIANG, CHINA
    Brand Name: ANSHI
    Certification: ISO9001, CNACL, SGS, DAS
    Model Number: XL-011B-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Can discuss
    Packaging Details: CARTON:53*24*24CM
    Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
    Supply Ability: 100000 pcs per week
    Contact Now
    Detailed Product Description
    Material: ABS / PBT Contact: Brass Or Phosphor Bronze
    Plating: Nicle Base, Sliver Plate Specification: Disconnection Or Connection
    OEM: YES Application: Mount On The Back Mount Frame

    Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type



    Material

    Plastic component         ABS or PBT (UL-94V0)
    Contact material Phosphor bronze or Brass
    Contact plating Silver plating



    Mechanical Performance Insertion force : 40~75N
    Pull Out Force : F≥25N(axial) F≥7.5N(radial)
    IDC Life : 200 times(20-26 AWG Solid wire) minimum
    Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
    Environment Characteristic Storage Tempreture: 40 to 70°C
    Operating Temperature : 10 to 60°C
    Relative Humidity: 95%, noncondition
    Electrical Performance Insulation resistance: 1000 Mohms minimum
    Contact resistance:7 mohms maximum

    Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s







    Features :

    Based on genuine LSA-PLUS Connection technology.
    Avaiable in 10 pair configuration with parallel test access or overvoltage protection contact.
    LSA-PLUS module mount on back mount frame.
    LSA-PROFIL modules mount on profile rods (8-pair modules: 75mm spacing between rods; 10-pair modules:95mm spacing between rods) or back mount frame.
    Suitable for use in all xDSL and ADSL2+ circuits.
    Robust long-term environment stability allows both indoor and outdoor installation.

    Supports all LSA-PLUS Series 2 accessories :

    Overvoltage protection magazine.
    Labels & Test and connection cords.



    Specification :

    Transient voltage : 2.5 kV.
    Operation voltage for basic insulation : 210 VDC TNV.
    Pollution severity : II.
    Current - carrying capacity : 2 A.
    Impulse current : 5 kA ( 8 / 2µs ).
    Single solid wire per contact : 0.35 mm / 0.68 mm to 0.9 mm / 1.5 mm.
    Stranded wires : 0.12mm to 0.32 mm / up to 2.1 mm AWG 28 to AWG 20.
    Overall diameter of connectable wire : 0.68 mm to 1.6 mm (solid insulation ).
    Storage Temperature: - 40 °C to + 90 °C.
    Transport Temperature : - 40 °C to + 90 °C.
    Operation Temperature : - 5 °C to + 60 °C.
    Relative humidity : < 95% ; no water condensation, no ice.
    Atmosphere pressure: 70-106Kpa.



    Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type

    Label Holder 10 Pair LSA Plus Module Grey Connection Module Silver Plating For Krone Type
