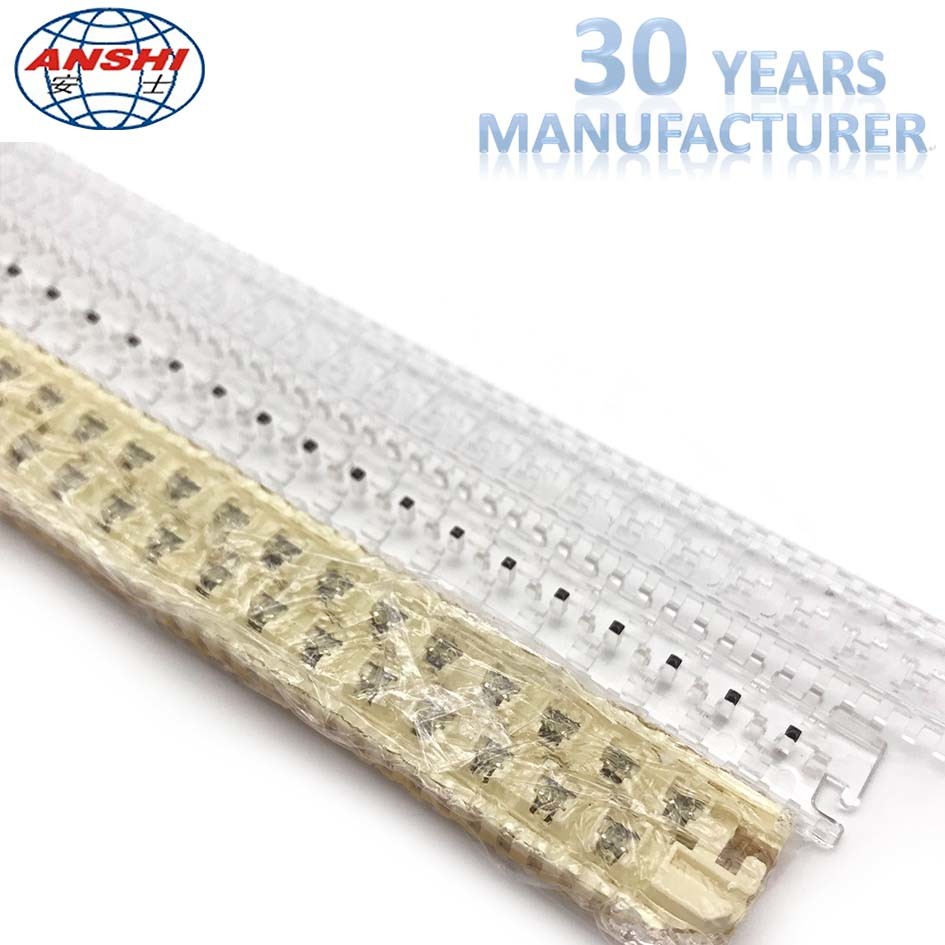

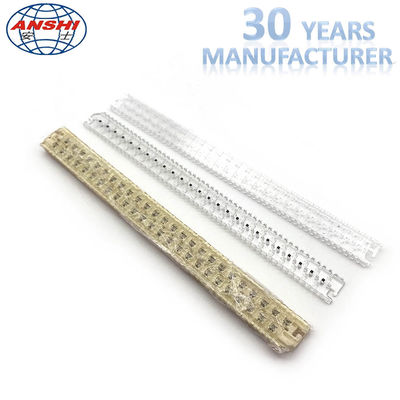

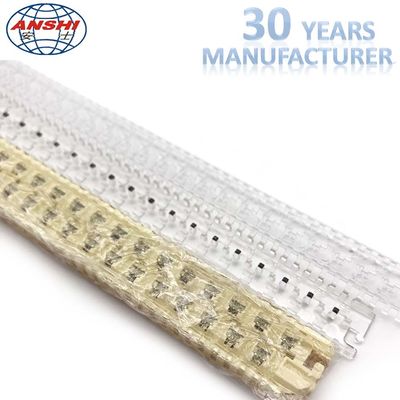

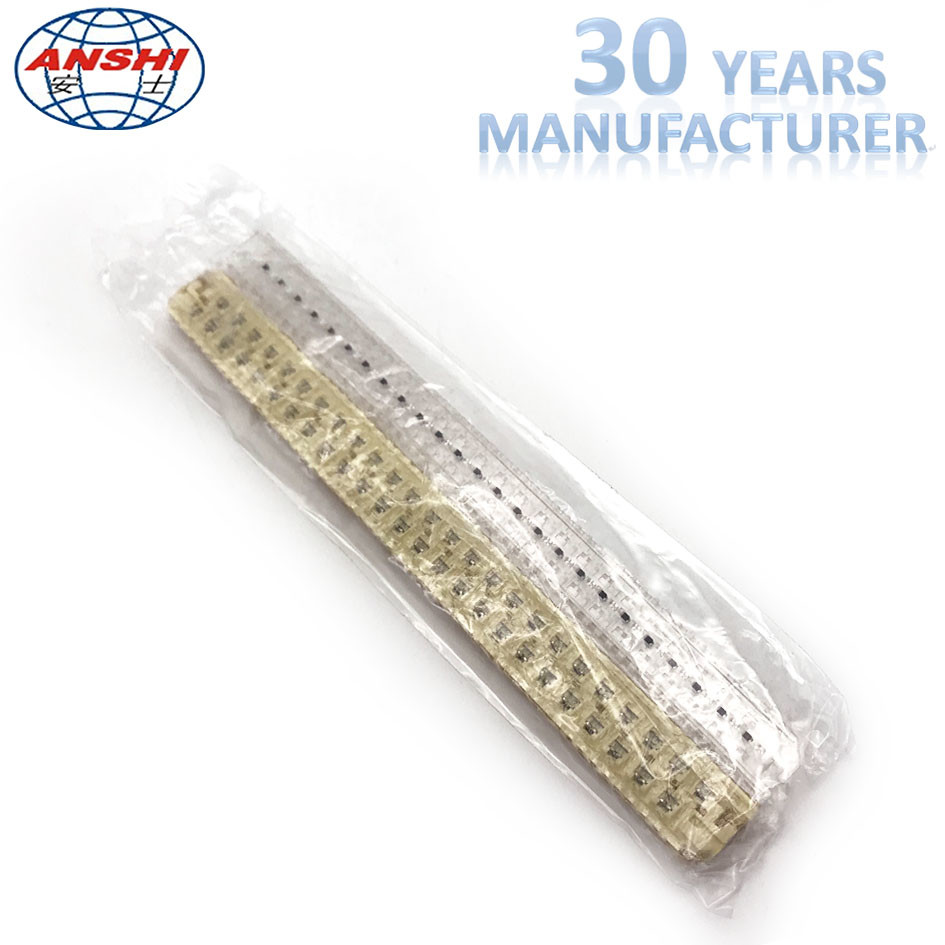

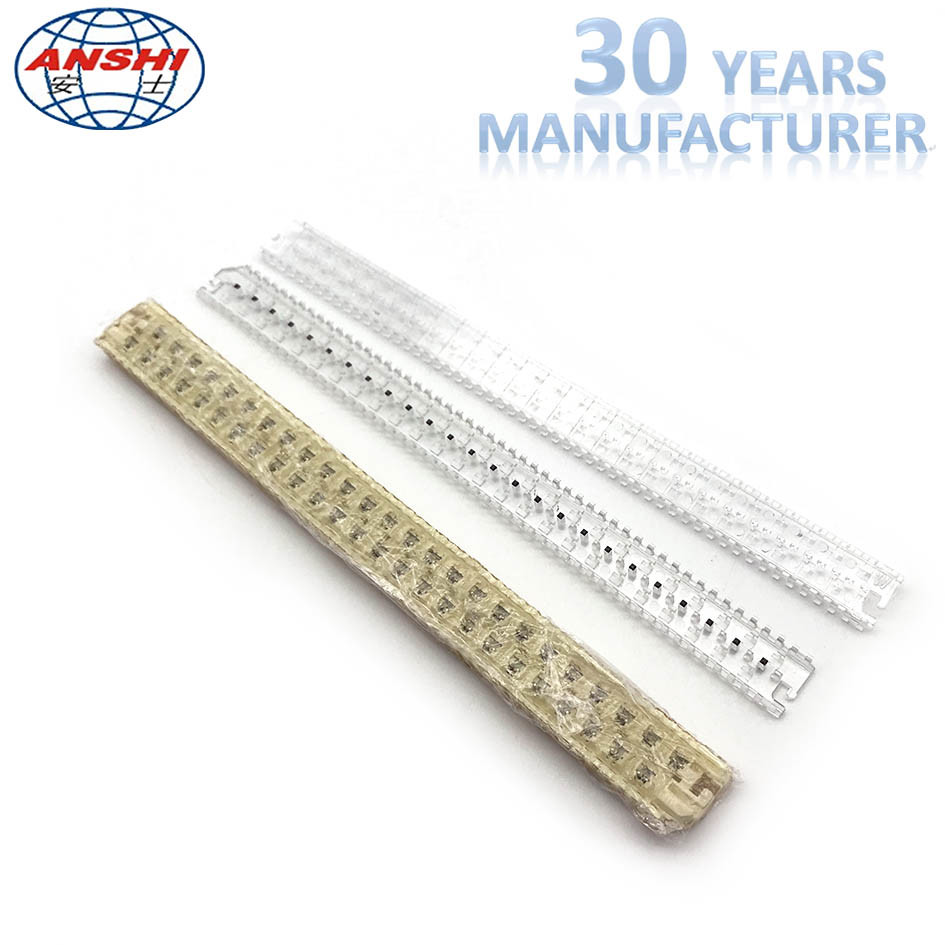

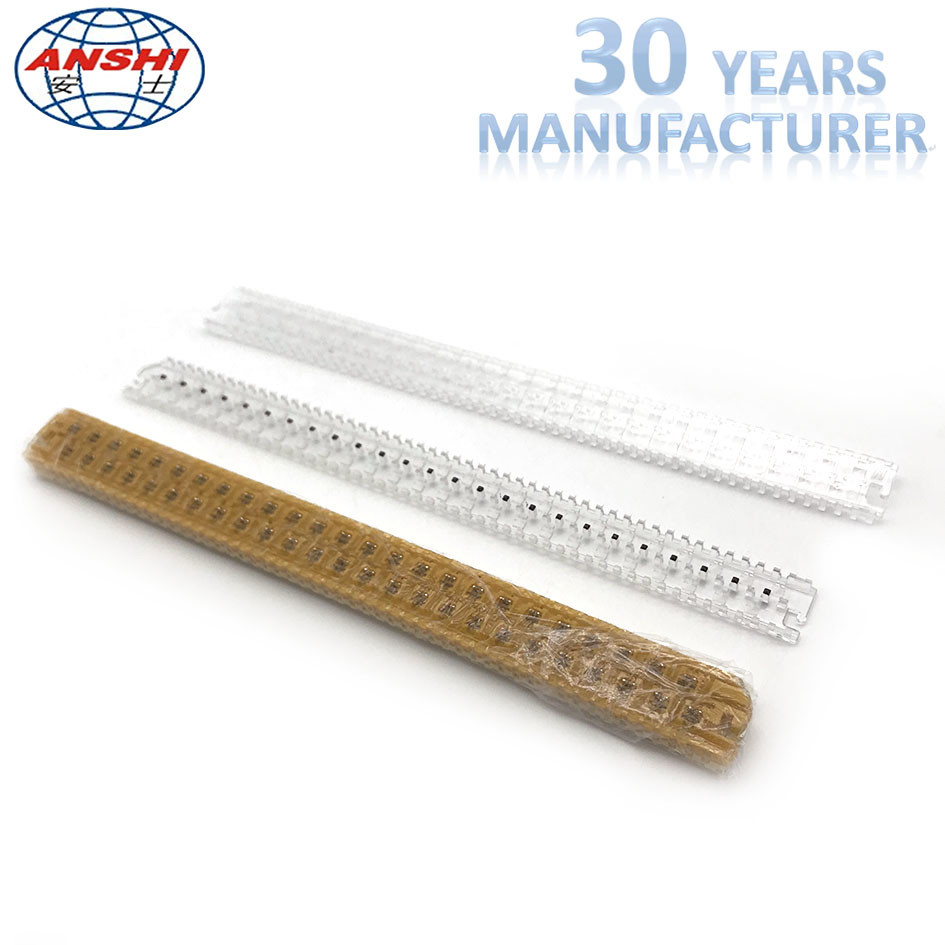

Waterproof Splicing Connected Modular 3M Standard Gel Filled 25 Pair 4000DWP / TR

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, CNACL, SGS, DAS
Model Number XL-022A
Minimum Order Quantity Can discuss
Price Negotiable
Packaging Details CARTON:53*24*24CM
Supply Ability 10000 pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 25 Pairs Connection Module Material PC
Contact Pin Silver-plated Phosphor Bronze Gel Filled Yes
Application Telecommunication Type Straight Connection
Highlight

lsa disconnection module

,

krone disconnection module

Leave a Message
Product Description

Waterproof Splicing Connected Modular 3M Standard Gel Filled 25 Pair 4000DWP / TR



Quick Detail:

1, Plastic Housing: PC (UL 94v-0)

2, With Gel or Without Gel

3, Contacts: Phosphor Bronze

4, Visibility to Jumpers.

5, direct connection, bridge connection and multiple connection

6, Pair-at-once termination

7, 10Pair pluggable splicing module,25pair pluggable splicing module, mini splicing module 4000G/TR, 4000D/TR,4005GBM/TR,4005DPM/TR,4008D/TR



Description:

10-pair Communication Cable Connecting Module is used to connect all plastic communication cables
(diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection.
It is widely used in communication circuit.
The contact is designed into tuning fork type and sheet joint so that connection will not be hampered.
Max insulation diameter (mm): 1.65
Cable style and wire diameter : 0.65-0.32mm(22-28AWG)

Mechanical Performance
Plastic Housing: PC (UL 94v-0)
With Gel or Without Gel
Contacts: Phosphor Bronze
Wire Insertion Force: 45N Typical
Wire Pull out Force: 40N Typical
Use Times: >100



ORDERING INFORMATION

Item NO. Description



D/TR means without gel,G/TR means with gel


MT-2827 Single pair test probe for YH-2810A 10pair quick connect modules.



MT-4005-10 10Pair Splicing Module,please note on with GEL or NOT.
MT-4000 25Pair Splicing Module,please note on with GEL or NOT.



We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.



The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.



Applications:

High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.



Specifications :

Mechanical Performance Plastic Housing: PC (UL 94v-0)
With Gel or Without Gel
Max insulation diameter (mm): 1.65
Cable style and wire diameter : 0.65-0.32mm(22-28AWG)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Mechanical Performance Wire Insertion Force: 45N Typical
Wire Pull out Force: 40N Typical
Use Times: >100
