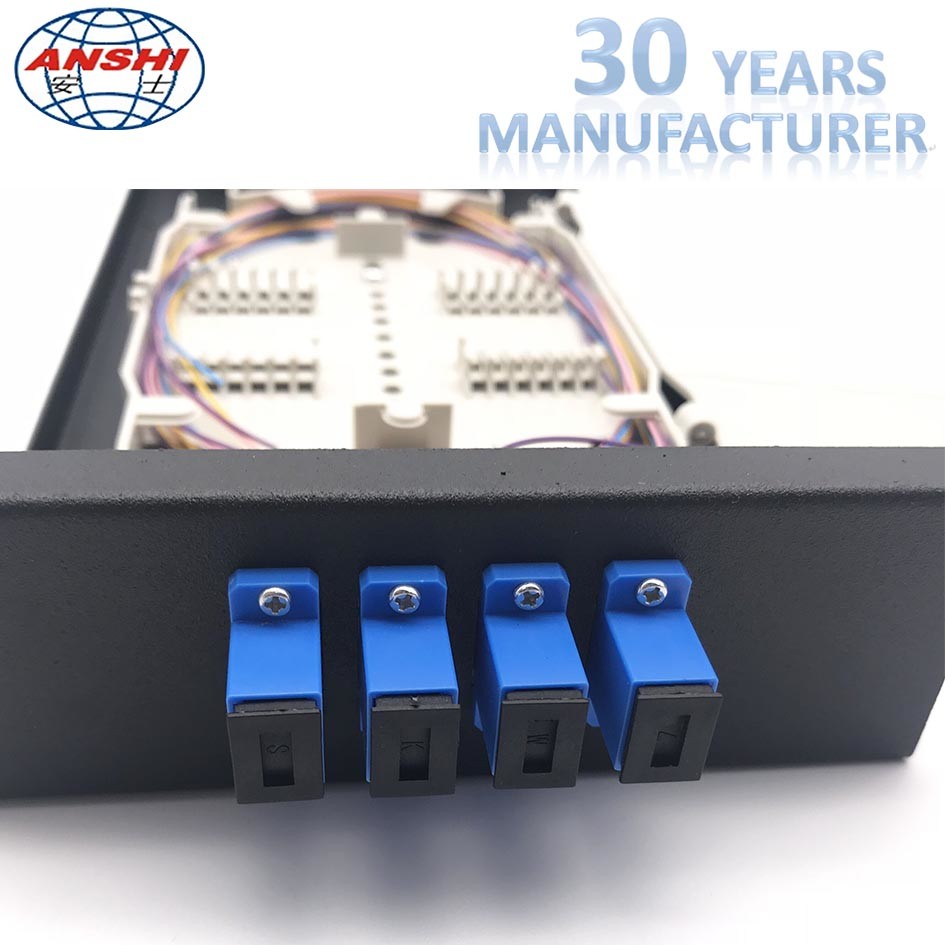

Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations

Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations

    • Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations
    • Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations
    • Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations
    • Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations
    • Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations
  • Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ROHS, ISO9001
    Model Number: AS-ODF-SC-4

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Supply Ability: 20,000 pcs/week
    Contact Now
    Detailed Product Description
    Product Name: Indoor Termination Box Installation: Wall Mount
    Dimension: 290x130x44mm Type: SC/UPC
    Max Capacity: 12 Cores Application: FTTH System



    Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations

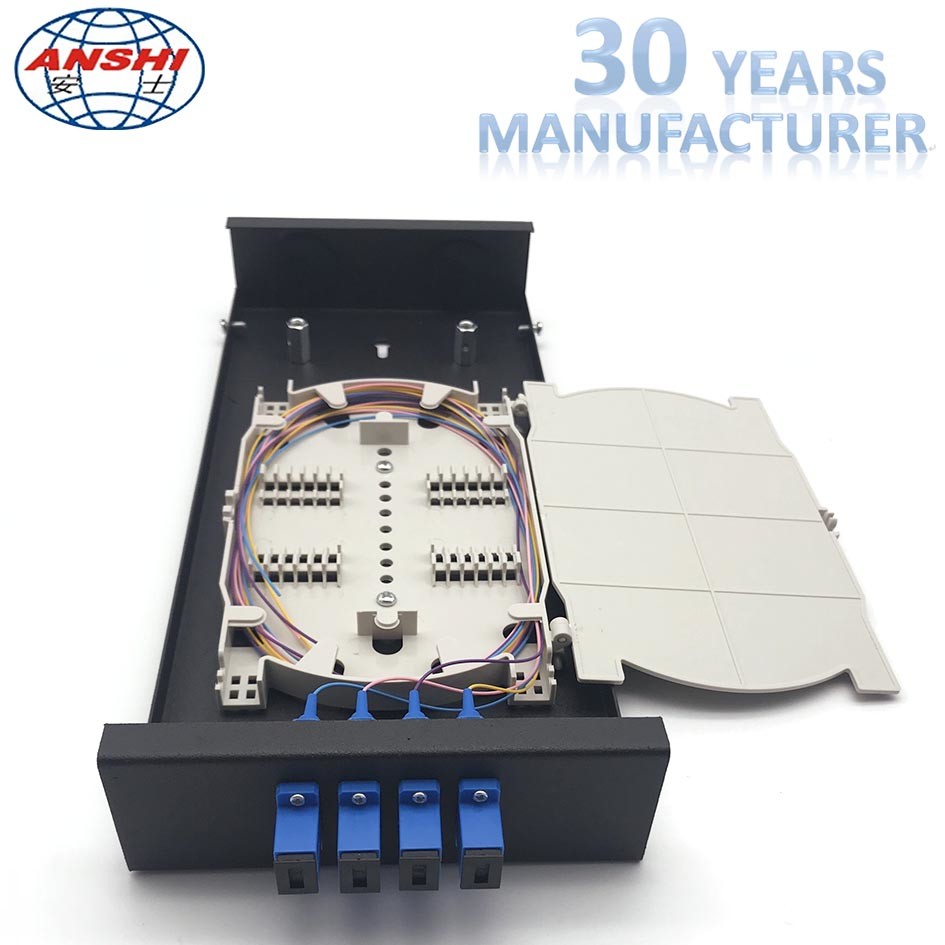

    It is FTTH mini optic terminal box, made of high quality plastic, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fiber.



    Features:

    • Metal:cold rolled sheet
    • Design for indoor uses.

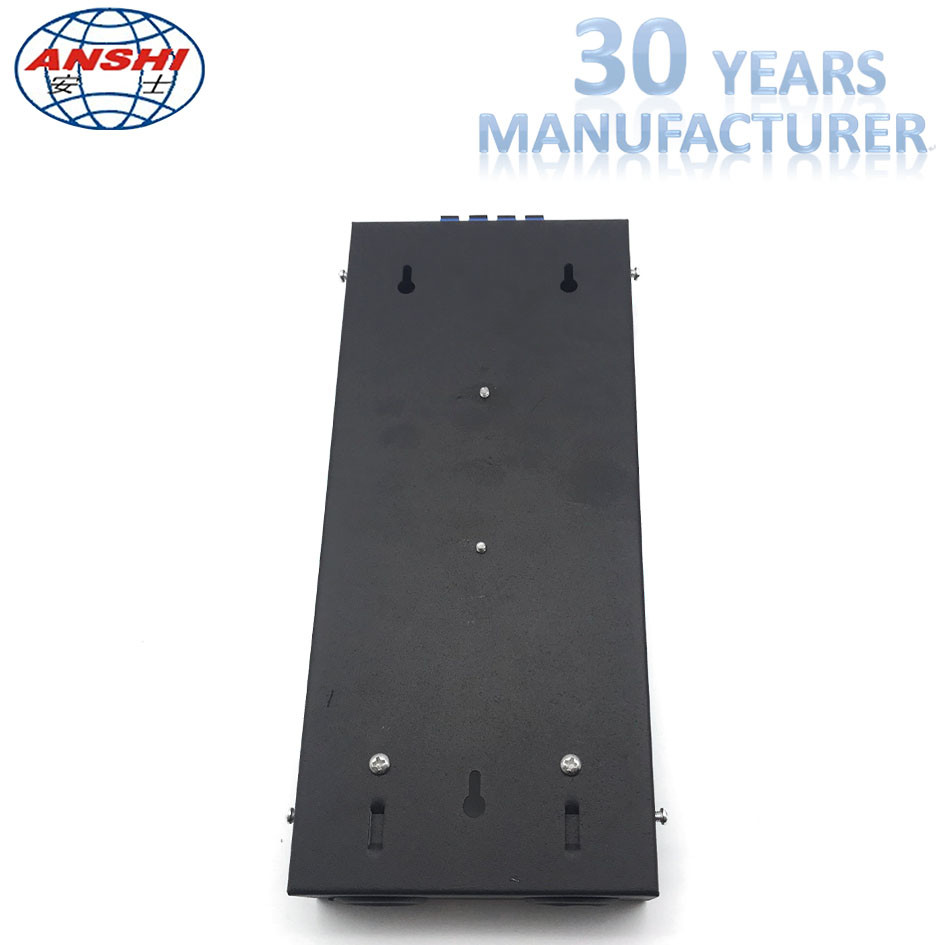

    • Easy installations: Ready for wall mount – installation kits provided.
    • Can connect/reconnect to adapters more than 200 times
    • Connector for FC, SC, ST
    • Max. Capacity:  fibers
    • Dimension: 290x130x44mm( L X W X H ) can customized



    Environmental requirement


    Working temperature : -40℃~+85℃
    Relative humidity : ≤85% (+30℃)
    Atmospheric pressure : 70Kpa~106Kpa


    Main technical datasheet


    Insertion loss : ≤0.3db
    UPC return loss : ≥50db
    APC return loss : ≥60db
    Life of insertion and extraction : >1000 times



    Applications:

    ---suitable for Pigtail, ribbon and bunch cable connectors distribution

    ---Used for wall-mounted and rack-mounted applications

    Metal Optical Fiber Distribution Box / Wall Mount Enclosure Easy Installations
