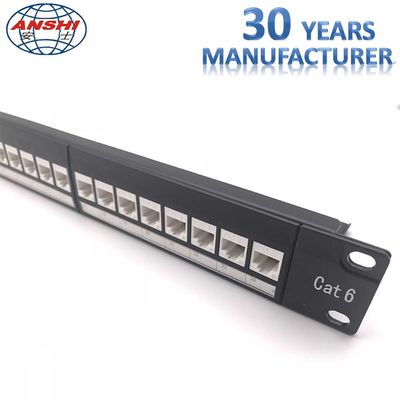

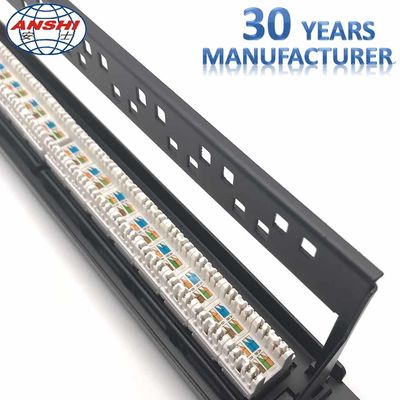

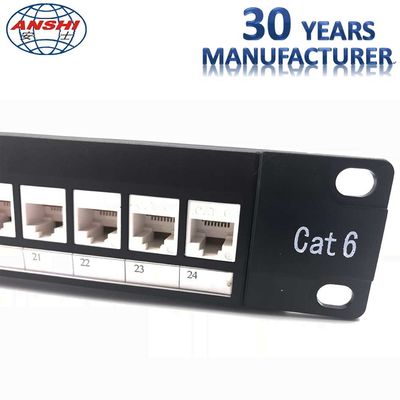

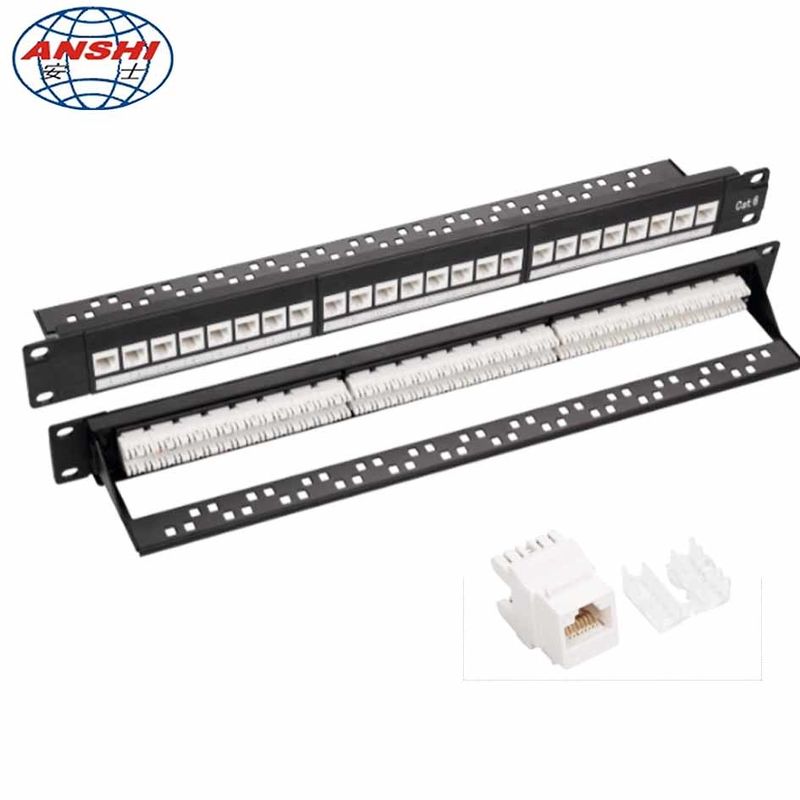

CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack

CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack

    • CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack
    • CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack
    • CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack
    • CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack
  • CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack

    Product Details:

    Place of Origin: ZHEJIANG, China
    Brand Name: ANSHI / CAN OEM
    Certification: SGS; IS9001
    Model Number: AS-PL-D24

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiable
    Supply Ability: 10000 Pieces per Month
    Contact Now
    Detailed Product Description
    Name: Patch Panel Type: Unshielded Type
    Port: 24 Ports Height: 1U
    Color: Black Category: CAT5e/CAT6/CAT6A

    CAN OEM, 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Snap In Patch Panel with RJ45 Keystone Jack



    Features:

    1.100% passed FLUKE DTX-1800 cat6 test.
    2.15 years quality guarantee.
    3.IDC fits for 22-26 AWG solid wire.
    4.Insertion Life:750 times MIN
    5.Punching Life:250 times MIN
    6.Meet TIA/EIA-T568A and T568B category 6 requirements.

    7.It has been designed to exceed TIA/EIA specification.The bandwidths of category 6 upto 500 MHZ.

    Material.

    Housing Body: PC UL94V-2 (Customized UL94-V0)
    IDC Housing: PC
    IDC Contact: Phosphor Bronze with Nickel Plating 100u"
    Contact Pin: Phosphor Bronze with Gold Plating 3u"-50u"
    Gold Plating Thickness: Default 3u", customized 6u"-50u"
    PCB: FR4 1.6mm(0.04u") thickness,2 layers



    CAN OEM 1U 19'' Inch 24 Port CAT6 UTP Rack Mount Patch Panel with RJ45 Keystone Jack
