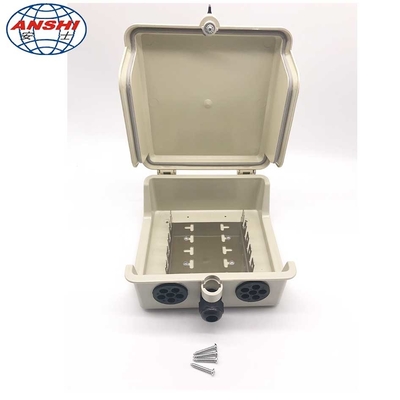

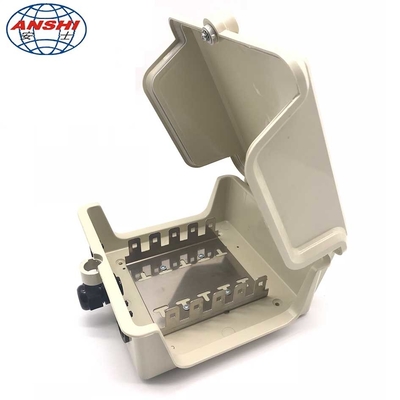

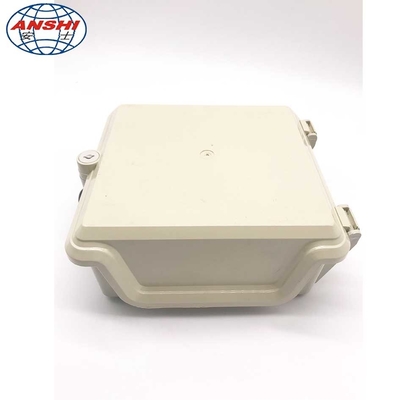

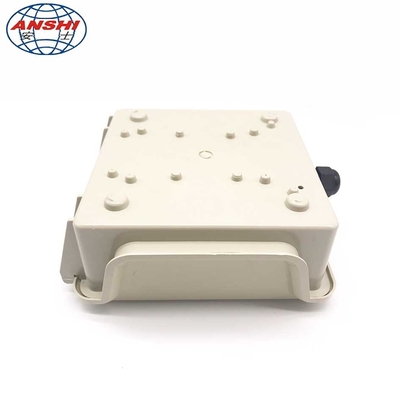

50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock

50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock

    • 50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock
    • 50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock
    • 50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock
    • 50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock
  • 50 Pairs Outdoor Copper Cable Distribution Box DP Internal Box With Key Lock

    Product Details:

    Place of Origin: ZHEJIANG, CHINA
    Brand Name: ANSHI
    Certification: ISO 90001, SGS
    Model Number: AS-DB50W

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiable
    Supply Ability: 8000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product: Copper Outdoor Termination Box Material: ABS Or PC & ABS
    Color: Grey Or Cream Capacity: 50 Pairs
    Lock: Key Lock Or Screw Lock Size: 220L*190W*87Hmm

    50 Pairs Outdoor Cable Copper Distribution box DP Internal Box with Key Lock, ABS



    Features:


    1) Can be mounted with LSA-PLUS 10-pair distribution or connection module


    2) Waterproof box, suitable for outdoor wire distribution


    3) Material of house: ABS or ABS + PC fire-resistant


    4) Including stainless steel mounting frame, but modules to be ordered separately


    5) Including 1 back mount frame(3ways)


    6) Compatible with Krone modules

    AS-DB30W:


    1) Capacity: 30 pairs


    2) Size: 210 x 135 x 85mm






    Specifications:



    1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;


    2. The modules are compatible with KRONE LSA-PLUS modules.


    3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires


    4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N


    5. Internal diameter of connection wire: 0.4-0.6 mm


    6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard



    7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections


    8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition


    9. Intermediate resistance: no more than 3m ohm under standard examination condition


    10. Dielectric strength: according to industry standard


    11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types


    12. Life: durability 200 cycles
