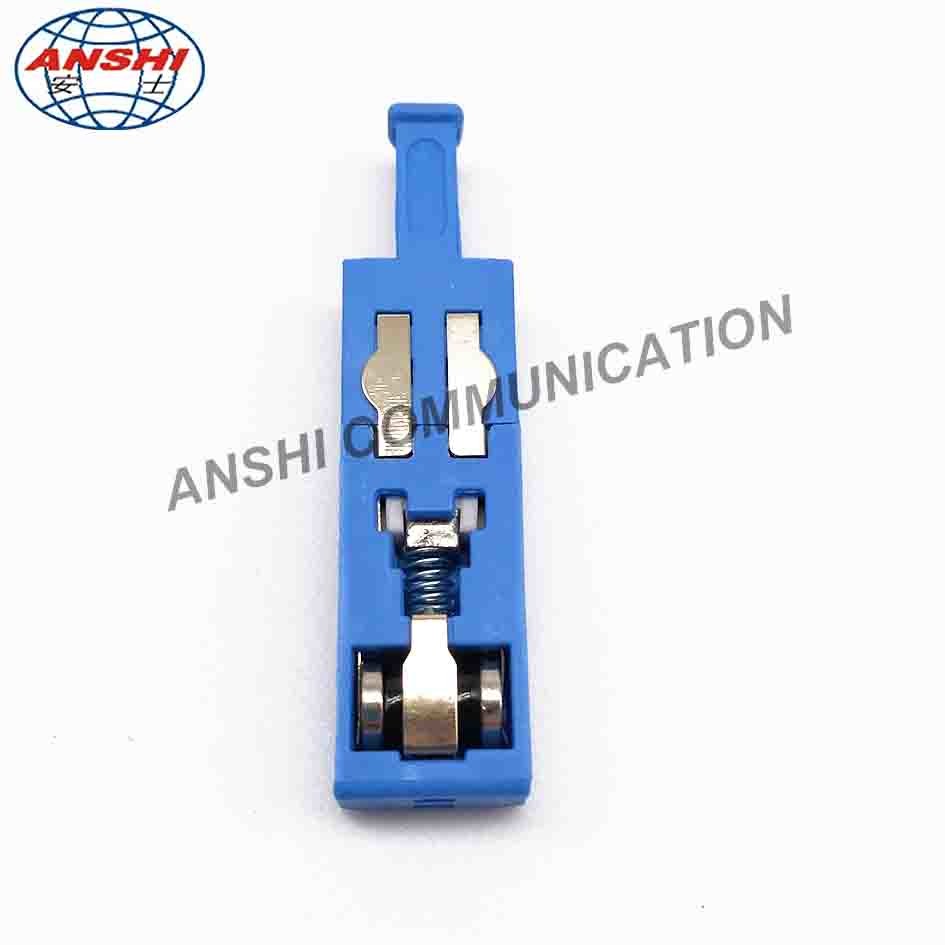

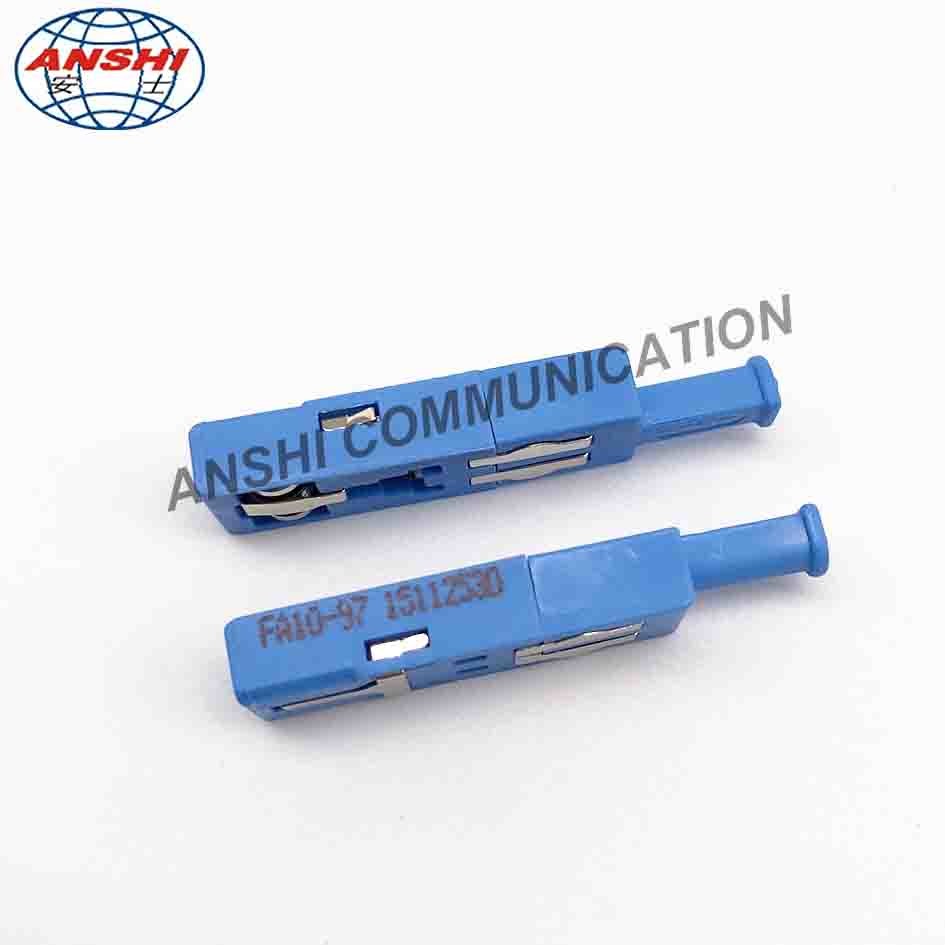

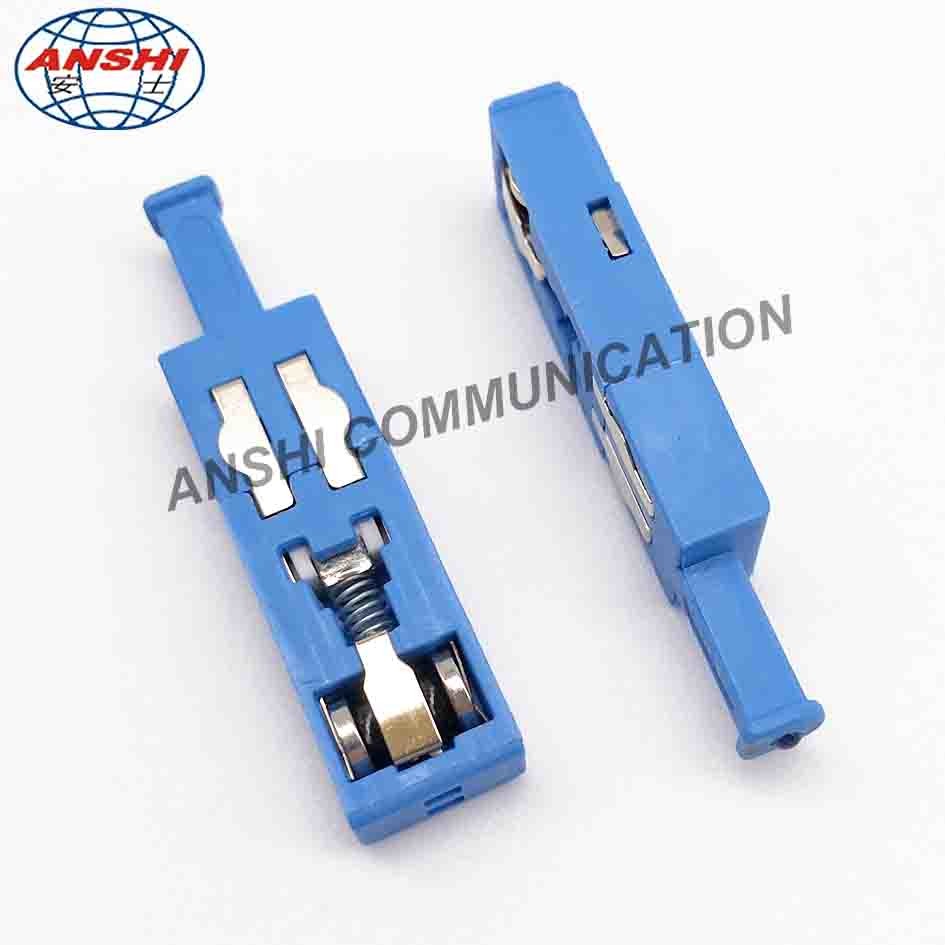

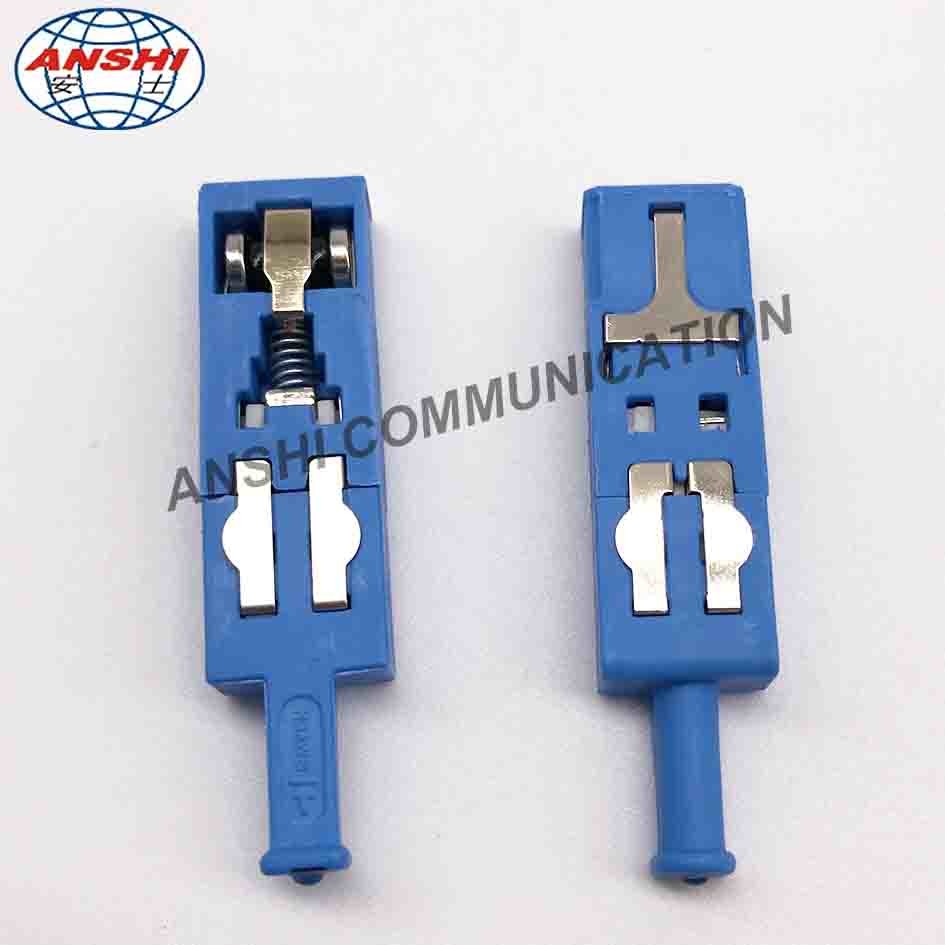

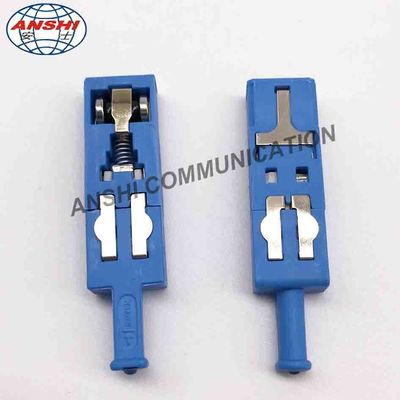

FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame

FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame

    • FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame
    • FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame
    • FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame
    • FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame
  • FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame

    Product Details:

    Place of Origin: China
    Brand Name: ANSHI
    Certification: ROSH, ISO9001
    Model Number: AS-MDF-XHW-P1

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: Negotiable
    Supply Ability: 10000pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Main Distribution Frame Application: Telecommunication.
    Material: ABS Color: Blue
    Type: Rack Mount For Model: FA8-239X

    FA-1097 Gas Discharge Tube Protective Unit​



    1. Perfect and reliable over-voltage and over-current protection with sound and light alarm, and self resulming fail protection.

    2. The performance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0), combustibility achieved GB/T 5169.7-1985 standard

    3. DC puncture voltage: 190-260V

    4. Pulse puncture voltage: ≤800V(1KV/us voltage increasing rate)

    5. Insulation resistance: 1000MΩ(between any two separable modules)

    6. Normal temperature resistance: ≤22Ω(R≤2Ω(over-current protection)

    7. Contact resistance: ≤3mΩ

    8. Contact resistance between reeds: ≤7mΩ

    9. Normal temperature current: I=falling from 500mA to 150mA t<20s

    I=falling from 1A to 500mA t<1.3s

    I=falling from 2A to 500mA t<0.5s

    I=falling from 3A to 500mA t<0.2s

    10.Sactive time: I=2.5A t<15s(220V/AC)

    11.resistance to voltage: ≥1000V(AC)/1min without breakdown or arc



    1, The frame is made of shaped alloy aluminum , it looks nice in shape and construction;

    2, Perfect and reliable over-voltage and over-current protection with sound and light alarm, and self resulming fail protection.

    3, Both security block and test block are equipped with dualclip, terminals, when cutover outside lines mat be not disconnected, clipping wires and cutting lines will be finished at the same time, the connecting is quick and reliable.

    4, The performance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0), combustibility achieved GB/T 5169.7-1985 standard

    5, DC puncture voltage: 190-260V

    6, Pulse puncture voltage: ≤800V(1KV/us voltage increasing rate)

    7, Insulation resistance: 1000MΩ(between any two separable modules)

    8, Normal temperature resistance: ≤22Ω(R≤2Ω(over-current protection)

    9, Contact resistance: ≤3mΩ

    10, Contact resistance between reeds: ≤7mΩ

    11,Normal temperature current: I=falling from 500mA to 150mA t<20s

    I=falling from 1A to 500mA t<1.3s

    I=falling from 2A to 500mA t<0.5s

    I=falling from 3A to 500mA t<0.2s

    12,Sactive time: I=2.5A t<15s(220V/AC)

    13,resistance to voltage: ≥1000V(AC)/1min without breakdown or arc

    14,Clip-on life: >200 times





    FA-1097 Gas Discharge Tube Protective Unit MDF Main Distribution Frame
