128 Pairs Test module Main Distribution Frame , Telecommunication MDF Distribution Frame

Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-MDF-PT-C
Minimum Order Quantity 50
Price Negotiable
Supply Ability 1000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 100 Pair MDF Protection Connection Block Application Telecommunication
Material ABS Color Grey And Blue
Capacity 128 Pairs Type Rack Mount
Highlight

intermediate distribution frame

,

optical distribution frame

Leave a Message
Product Description

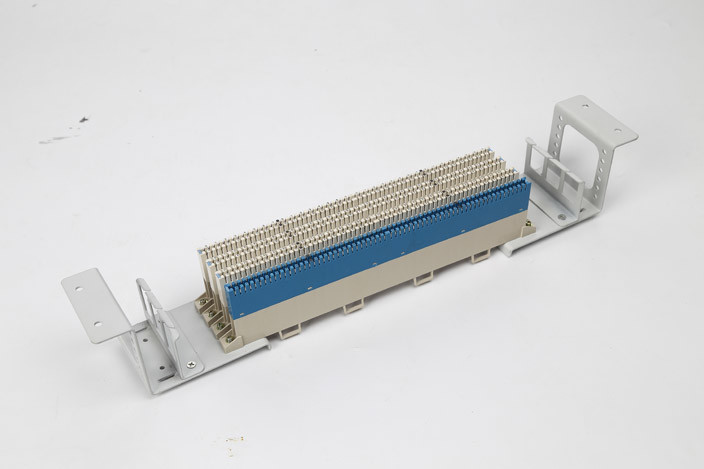

128 Pairs Test module Main Distribution Frame, Telecommunication MDF Distribution Frame



Specifications:


1. Protect connection block.
2. Main Distribution Frame have horizontal and vertical types.



Summary:



Main Distribution Frame constitute by the frame body, connection block, test module, alarm systems, test equipment, protection unit and so on, MDF is use to connection with the switch and the user cable, patch cord, over current, over voltage protection and alarm test function, the implementation of YD/T694-2004 standard products.



Features:



1. All aluminum alloy frame, rigid, elegant appearance, a variety of cable connecting all with Built-in card access methods, safe and reliable.

2. There are many dimensions, structure for the use of protection unit and connection block to meet the new, update, modification, maintenance needs.

3. With four-grade alarm, can use access control, security and other system monitoring the implementation of centralized control or centralized alarm remote interfaces.

4. Contact reed plated with gold or bright tin, flame retardant engineering plastic used. Has a good over-voltage protection and over-current failure to protect.

5. The frame has perfect grounding system.



Technical parameters:



1. Work conditions:

(1) Working temperature: -5 ~ +40 (degree) (2) Relative humidity: < 85% (30 degrees)

(3) Atmospheric pressure: 70 ~ 106 (kpa)

4) Storage temperature: -25 ~ - +55 (degrees)

2. Performance parameters:

(1) Insulation Resistance ≥ 1000MΩ

(2) high-voltage protection> 3000V (DC) / mm without breakdown, no arc.

(3) Contact Resistance ≤ 7mΩ between reed wire and terminal into the connection between the contact resistance ≤ 3mΩ

(4) Pull strength: ≥ 25N
